PE7001-2

Overview

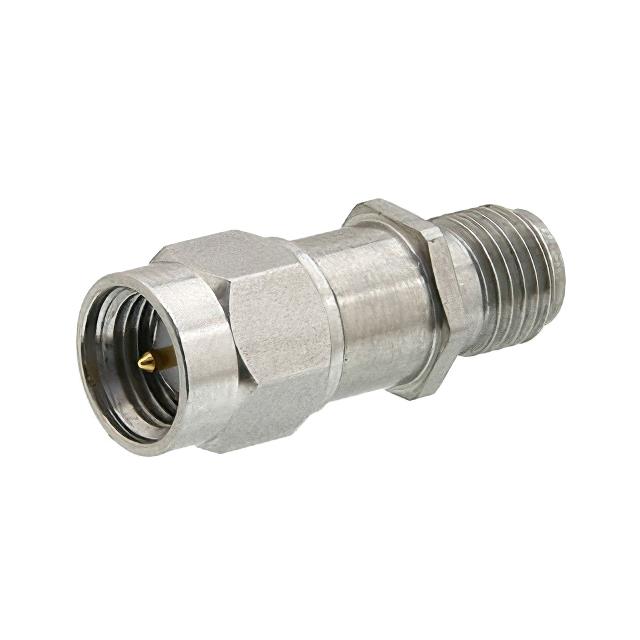

The Pasternack PE7001-2 is a fixed RF attenuator designed for microwave applications. It provides a precise attenuation value of 2 dB with a maximum operating frequency of 3 GHz. The device features an SMA male connector on one side and an SMA female connector on the other, ensuring compatibility with standard coaxial systems. It is rated to handle up to 2 Watts of power at the stated attenuation level. The unit utilizes a passivated stainless steel body for durability and environmental resistance.

Feature Summary

• Fixed attenuation performance of 2 dB
• Operational frequency range up to 3 GHz
• SMA male to SMA female interface configuration
• Passivated stainless steel construction

Applications

• General-purpose test instrumentation
• Telecommunications equipment signal conditioning
• Microwave circuit power reduction

Procurement Notes

Verify the specific model suffix against official Pasternack documentation to confirm exact attenuation values and connector gender configurations. Ensure the required power rating of 2 Watts aligns with system specifications. Confirm frequency limits do not exceed 3 GHz for optimal performance. Check for RoHS compliance status if required by project standards.

Selection Notes

Select this component when a fixed 2 dB reduction is required within the 3 GHz bandwidth. The SMA interface suits standard coaxial setups. Consider the 2 Watt power handling capability relative to the application's signal levels. Stainless steel construction offers robustness for industrial or outdoor environments compared to plated alternatives.

Part Context

This part belongs to the Pasternack PE7001 series of fixed attenuators. The series includes various attenuation values such as 6 dB, 9 dB, and 20 dB, all sharing similar SMA interfaces and 3 GHz frequency ratings. These components are standardized for consistent performance across different signal processing needs in RF engineering.

Replacement Considerations

Direct substitutes include other Pasternack models from the same series with identical SMA interfaces and frequency ratings, such as PE7001-6 or PE7001-9, provided the attenuation value difference is acceptable for the circuit design.
