PE7001-20

Overview

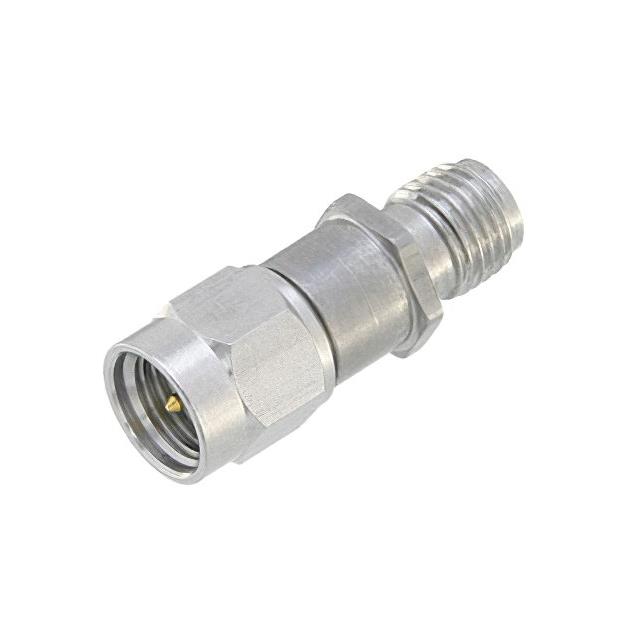

The Pasternack PE7001-20 is a fixed RF attenuator designed for microwave applications. It provides a nominal attenuation value of 20 dB with an impedance of 50 Ohms. The device operates within a frequency range of 0 Hz to 3 GHz. It features SMA male to SMA female connector interfaces and is rated for a maximum power handling of 2 Watts at the stated attenuation level. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

• Fixed attenuation design providing consistent signal reduction
• Passivated stainless steel construction for environmental resistance
• SMA connector interface for standard coaxial integration

Applications

• Microwave signal testing and measurement
• RF instrumentation equipment
• Telecommunications systems

Procurement Notes

Verify the specific datasheet version for the PE7001-20 to confirm current manufacturing status and compliance certifications. Ensure that the required attenuation tolerance and VSWR specifications meet the strict requirements of the target application circuit before finalizing procurement decisions.

Selection Notes

Select this component when a precise 20 dB signal reduction is required within a 50 Ohm system up to 3 GHz. Consider the 2 Watt power rating to ensure it exceeds the maximum expected signal power in the line. Verify that SMA connectors align with existing cable assemblies and test fixtures.

Part Context

This part belongs to the Pasternack PE7001 series of fixed attenuators. The series offers various attenuation values ranging from low single digits to higher decibel levels, all sharing similar physical dimensions and connector types. This allows for standardized mechanical integration across different signal conditioning needs.

Replacement Considerations

Compatible substitutes include other 20 dB fixed attenuators with SMA male-to-female interfaces and 50 Ohm impedance. Ensure replacement parts support the same 3 GHz frequency range and 2 Watt power rating to maintain system performance integrity.
