PE7001-3

Overview

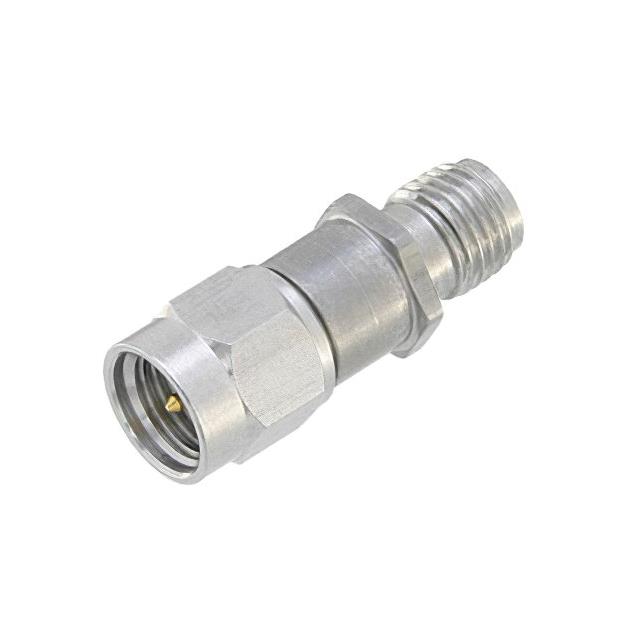

The Pasternack PE7001-3 is a fixed RF attenuator designed for coaxial applications. It provides a precise attenuation value of 3 dB. The component features SMA male to SMA female connectors, ensuring compatibility with standard RF systems. Constructed with a passivated stainless steel body, it offers durability and shielding. The unit is rated for operation up to 3 GHz and can handle power levels up to 2 Watts at the stated attenuation value.

Feature Summary

• Fixed attenuation design providing consistent signal reduction
• SMA male to SMA female connector configuration
• Passivated stainless steel body construction

Applications

• RF signal level adjustment in test and measurement setups
• Signal conditioning in microwave communication systems
• Attenuation requirements within 3 GHz frequency range

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this model provides a fixed 3 dB reduction. Confirm connector gender and type compatibility with existing system interfaces. Ensure operational power levels do not exceed the 2 Watt rating to maintain component integrity and performance specifications during use.

Selection Notes

Select this model when a fixed 3 dB attenuation is required within the 3 GHz bandwidth. Consider the SMA interface for connection compatibility. Evaluate the passivated stainless steel housing for environmental resistance compared to other material options. Verify power handling capabilities against peak signal levels in the target circuit to ensure safe operation.

Part Context

This component belongs to the Pasternack PE7001 series of fixed attenuators. The series includes various attenuation values such as 9 dB, 20 dB, and 40 dB models. These units share similar construction characteristics, including passivated stainless steel bodies and ratings up to 2 Watts. The series supports frequencies up to 3 GHz, providing standardized solutions for RF signal management.

Replacement Considerations

Direct substitutes include other Pasternack fixed attenuators with identical 3 dB attenuation and SMA male-to-female configurations. Models like PE7005-3 offer similar functionality but operate at higher frequencies up to 18 GHz. Ensure any replacement maintains the same connector type and power rating to preserve system compatibility.
