PE7001-30

Overview

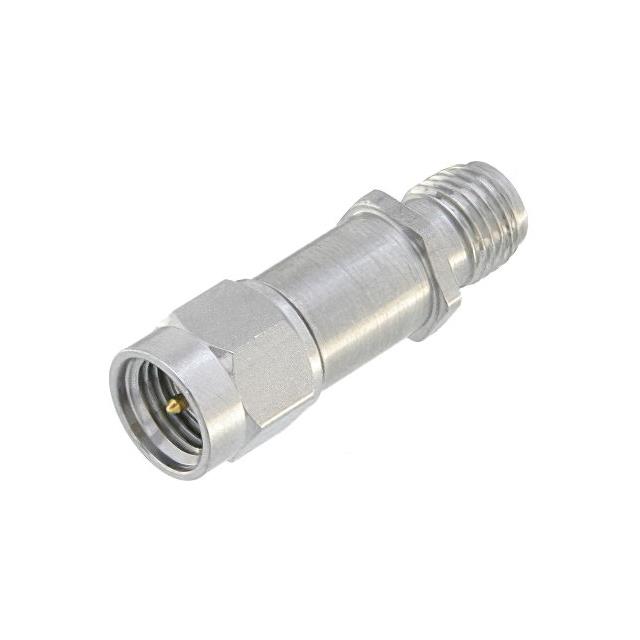

The Pasternack PE7001-30 is a fixed RF attenuator designed for coaxial applications. It provides a nominal attenuation value of 30 dB. The device operates within a frequency range of DC to 3 GHz. It supports a maximum power handling capacity of 2 Watts at the stated attenuation level. The component features SMA male to SMA female connectors. The housing is constructed from passivated stainless steel, ensuring durability and corrosion resistance in various environments.

Feature Summary

• Fixed attenuation performance with SMA male to female interface
• Passivated stainless steel body for environmental protection
• Rated for 2 Watts power handling up to 3 GHz

Applications

• Precision measurement systems
• Production test equipment
• RF signal conditioning circuits

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm current specifications. Ensure compatibility with system requirements regarding connector type, frequency range, and power ratings before procurement. Cross-reference part numbers with official Pasternack records to avoid counterfeit or obsolete components.

Selection Notes

Select this model when a 30 dB fixed attenuation is required within the DC to 3 GHz bandwidth. Consider the 2 Watt power rating and SMA connectivity for integration into standard coaxial setups. Evaluate the passivated stainless steel construction for suitability in harsh or corrosive environments compared to other housing materials.

Part Context

This component belongs to the Pasternack PE7001 series of fixed attenuators. The series offers various attenuation values while maintaining consistent SMA connectivity and 2 Watt power ratings up to 3 GHz. The PE7001-30 specifically addresses high attenuation needs within this frequency band using a robust stainless steel enclosure.

Replacement Considerations

Direct substitutes include other Pasternack models with identical electrical parameters and connector types. Verify that replacement parts maintain the 30 dB attenuation, 3 GHz frequency limit, and 2 Watt power handling capability. Ensure connector gender and interface standards match the existing system design.
