PE7001-40

Overview

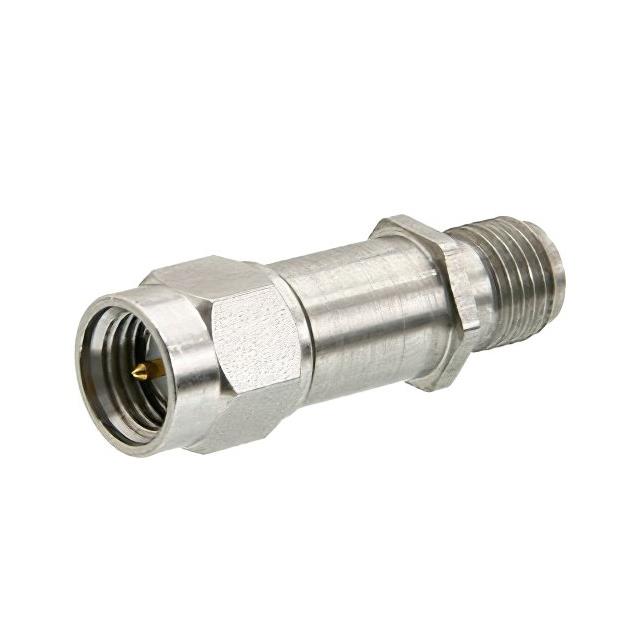

The Pasternack PE7001-40 is a fixed RF attenuator designed for coaxial applications. It provides a nominal attenuation of 40 dB with a 50 ohm impedance. The device features SMA male to SMA female connectors and utilizes a passivated stainless steel body. It is rated for a maximum power handling of 2 Watts and operates effectively up to a frequency of 3 GHz.

Feature Summary

• Fixed attenuation value of 40 dB
• SMA male to SMA female connector interface
• Passivated stainless steel construction
• Rated for 2 Watts power handling

Applications

• RF signal level reduction in test setups
• Impedance matching in microwave circuits
• Signal conditioning in communication systems

Procurement Notes

Verify the specific part number PE7001-40 against official Pasternack documentation to confirm the 40 dB attenuation rating and SMA connector configuration. Ensure that the required 2 Watt power handling and 3 GHz frequency limit align with your system requirements before procurement.

Selection Notes

Select this component when a precise 40 dB attenuation is required within a 50 ohm system. Consider the SMA interface compatibility and the 2 Watt power rating. Verify that the operating frequency does not exceed 3 GHz to ensure optimal performance and reliability.

Part Context

This model belongs to the Pasternack PE7001 series of fixed attenuators. The series offers various attenuation values while maintaining consistent SMA connectivity and stainless steel housing. This specific variant provides high attenuation suitable for significant signal reduction tasks.

Replacement Considerations

Compatible substitutes include other 40 dB fixed attenuators from Pasternack with identical SMA interfaces, such as those in the PE7001 series, provided they meet the 2 Watt and 3 GHz specifications.
