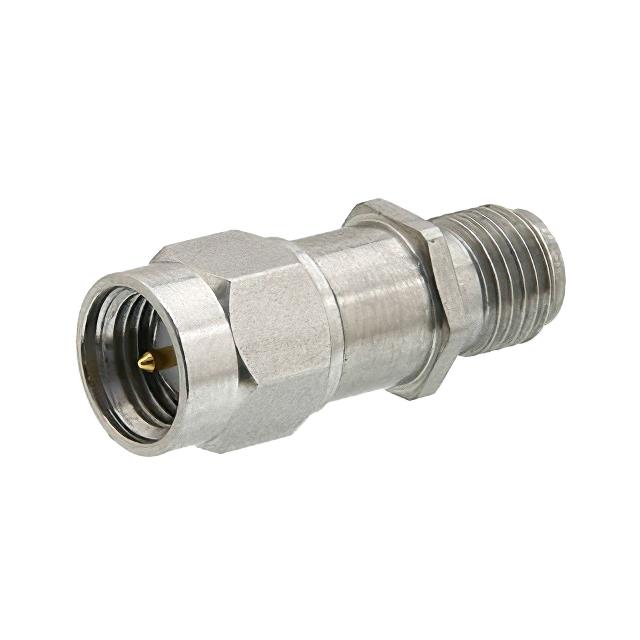

- Description：5 dB Fixed Attenuator, SMA Male
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Attenuation Value：5dB
- Frequency Range：0 Hz ~ 3 GHz
- Power (Watts)：2W
- Impedance：50 Ohms
- Grade：-
- Qualification：-
- Package / Case：SMA In-Line Module
Download product information
Overview
The Pasternack PE7001-5 is a fixed coaxial attenuator providing 5 dB attenuation. It features SMA male to SMA female connectors and operates up to 3 GHz. The unit is rated for 2 Watts power handling at the stated attenuation value. The device utilizes a resistive PI attenuator pad design within a passivated stainless steel body.
Feature Summary
- Fixed 5 dB attenuation with in-line resistive PI pad design
- SMA male to SMA female connector configuration
- Passivated stainless steel housing for durability
Applications
- RF signal level reduction in microwave circuits
- Impedance matching between 50 Ohm components
- Signal conditioning in test and measurement setups
Procurement Notes
Verify the specific ordering suffix matches the required connector gender and attenuation value. Confirm the frequency range requirement does not exceed 3 GHz. Ensure the power rating of 2 Watts aligns with system operational limits. Check RoHS compliance status if environmental regulations apply. Validate the stainless steel body material against corrosion requirements.
Selection Notes
Select this model when a precise 5 dB reduction is required in a 50 Ohm system. Consider the SMA interface compatibility with existing cabling. Evaluate the 3 GHz upper frequency limit against the application spectrum. Assess the 2 Watt power capacity for thermal management needs. Compare physical dimensions against available space constraints.
Part Context
This component belongs to the Pasternack PE7001 series of fixed coaxial attenuators. The series offers various attenuation values from 5 dB to 40 dB. All units share similar construction with passivated stainless steel bodies. They are designed for consistent performance across microwave frequencies.
Replacement Considerations
Direct substitutes include other Pasternack models with identical 5 dB attenuation and SMA interfaces. Verify that alternative sources maintain the 3 GHz frequency specification. Ensure replacement units support the same 2 Watt power rating. Confirm mechanical compatibility with existing mounting hardware.
