PE7001-6

Overview

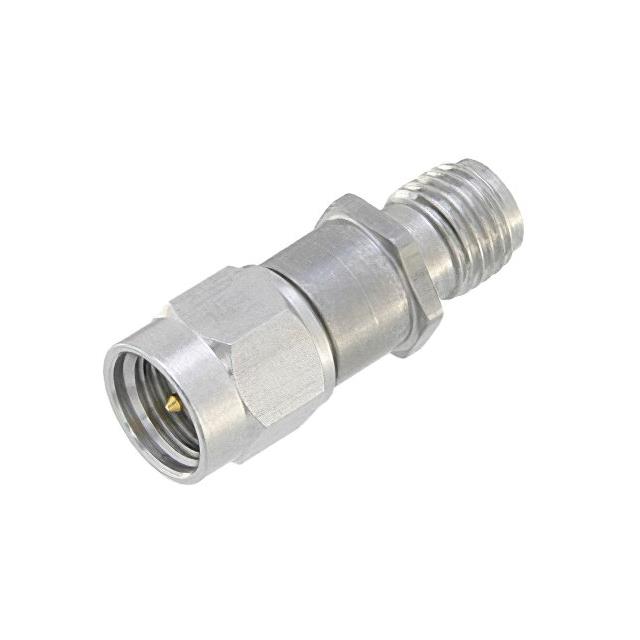

The PE7001-6 is a fixed attenuator manufactured by Pasternack Enterprises. It provides a nominal attenuation of 6 dB with a frequency range extending from DC to 3 GHz. The device features SMA male to SMA female connectors and is housed in a passivated stainless steel body. It is rated for a maximum power handling of 2 Watts within the specified frequency band.

Feature Summary

• Fixed attenuation value of 6 dB
• Frequency range from DC to 3 GHz
• SMA male to SMA female connector interface
• Passivated stainless steel housing

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal conditioning in instrumentation

Procurement Notes

Verify the specific datasheet version for the PE7001-6 to confirm mechanical dimensions and detailed electrical tolerances. Ensure compatibility with SMA connector standards in your system design. Check for RoHS compliance status if required by your manufacturing regulations. Confirm the 2W power rating aligns with your operational requirements.

Selection Notes

Select this component when a precise 6 dB loss is required between DC and 3 GHz. The SMA interface suits standard laboratory and industrial RF applications. Consider the stainless steel construction for durability. Verify that the 2W power rating meets the peak and average power levels of your signal source.

Part Context

This part belongs to Pasternack's fixed attenuator series, designed for reliable signal attenuation in coaxial systems. Fixed attenuators like the PE7001-6 offer stable performance without the variability of adjustable units. They are commonly used to protect sensitive equipment or improve match in RF chains.

Replacement Considerations

Compatible substitutes include other 6 dB fixed attenuators with SMA connectors and similar frequency/power ratings. Ensure any replacement maintains the same impedance (typically 50 ohms) and connector gender configuration to maintain system integrity.
