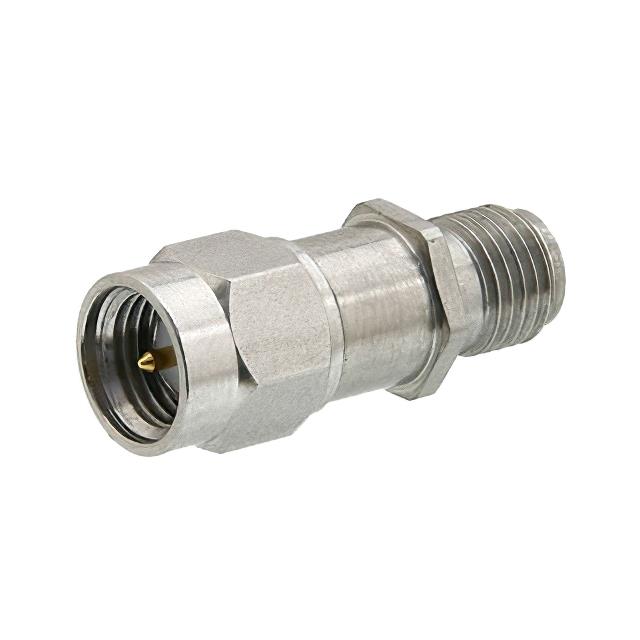

PE7001-9

$74.25

Description：9 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:4de129587ee2 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：9 dB Fixed Attenuator, SMA Male
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：9dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7001-9

Overview

The Pasternack PE7001-9 is a fixed RF attenuator designed for in-line applications. It provides a precise attenuation value of 9 dB across a frequency range from 0 Hz to 3 GHz. The component features SMA male to SMA female connectors and is rated for a maximum power handling of 2 Watts at the stated attenuation level. Constructed with a passivated stainless steel body, it ensures durability and consistent performance in microwave environments.

Feature Summary

Fixed 9 dB attenuation value
Frequency range up to 3 GHz
SMA male to SMA female interface
Passivated stainless steel construction

Applications

RF signal path attenuation
Microwave test and measurement setups
Signal level adjustment in communication systems

Procurement Notes

Verify the specific connector gender configuration (SMA male to SMA female) matches your system requirements. Confirm that the 2 Watt power rating and 3 GHz frequency limit are sufficient for your operational environment. Ensure the passivated stainless steel housing meets environmental durability standards. Cross-reference the exact part number to avoid confusion with other attenuation values in the PE7001 series.

Selection Notes

Select this model when a fixed 9 dB reduction is required within the 0 Hz to 3 GHz bandwidth. Consider the SMA interface compatibility with existing cabling. Evaluate the 2 Watt power handling against peak signal levels. The stainless steel body offers robustness for repeated use in laboratory or field conditions compared to plastic alternatives.

Part Context

This component belongs to the Pasternack PE7001 series of fixed attenuators. The series includes various attenuation values such as 10 dB and 12 dB, sharing similar physical construction and interface types. These units are standardized for general-purpose RF applications requiring reliable, passive signal reduction without active components.

Replacement Considerations

Direct substitutes include other Pasternack PE7001-9 units. Alternative manufacturers may offer compatible 9 dB SMA attenuators, but verify impedance matching (50 Ohms) and power ratings carefully.
