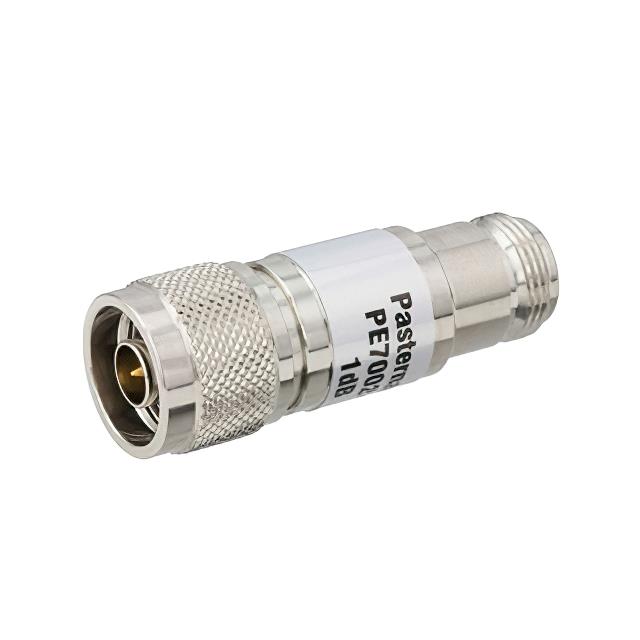

PE7002-1

$111.38

Description：1 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:d6d87869f5b7 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：1 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：1dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：1W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7002-1

Overview

The Pasternack PE7002-1 is a fixed attenuator with N male to N female connectors. It provides 1 dB attenuation up to 3 GHz. The unit has a brass nickel body and supports 50 ohms impedance. VSWR is 1.2:1. Power rating is 1 watt. Operating temperature ranges from -30 C to +70 C.

Feature Summary

Fixed 1 dB attenuation for signal level control
N male to N female connector interface
Brass nickel body construction

Applications

RF signal testing
Instrumentation systems
Telecommunications equipment

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm technical specifications. Ensure compatibility with existing system requirements before procurement. Check for any recent updates to the datasheet that may affect performance parameters or physical dimensions.

Selection Notes

Select this component when a precise 1 dB reduction is required in an RF circuit. The N-type interface suits standard test setups. Consider the 1 watt power limit and frequency range up to 3 GHz for application suitability. Verify environmental operating conditions match the -30 C to +70 C specification.

Part Context

This model belongs to the PE7002 series of fixed attenuators from Pasternack. The series includes variants with different attenuation values, such as PE7002-10 and PE7002-30. All share similar connector types and frequency ranges but differ in dB loss.

Replacement Considerations

PE7002-10 offers 10 dB attenuation instead of 1 dB. PE7002-30 provides 30 dB attenuation. Both maintain the same N male to N female configuration and 3 GHz frequency limit.
