PE7002-10

Overview

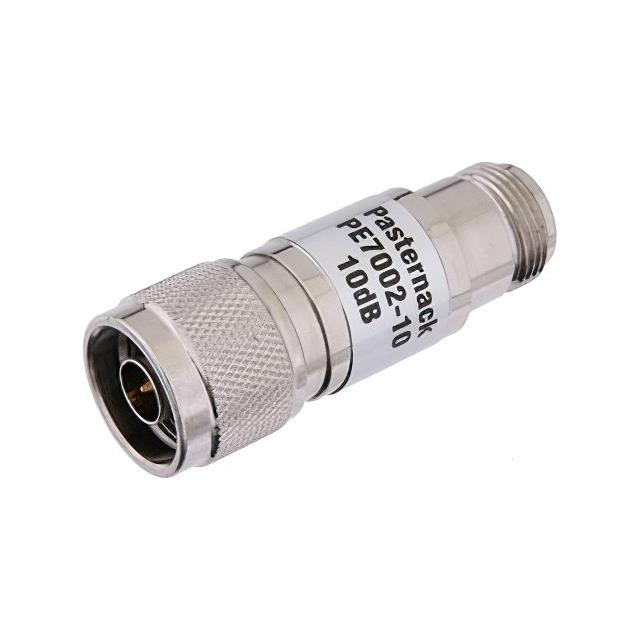

The Pasternack PE7002-10 is a fixed microwave attenuator designed for RF applications. It provides a nominal attenuation of 10 dB with a maximum frequency range extending from 0 Hz to 3 GHz. The device features N-type connectors, specifically male on one side and female on the other, ensuring compatibility with standard coaxial systems. Constructed with a brass body finished in nickel plating, it offers durability and corrosion resistance. The unit is rated for a maximum power handling capacity of 1 Watt. It maintains a characteristic impedance of 50 Ohms and exhibits a Voltage Standing Wave Ratio (VSWR) of 1.2:1. The operating temperature range spans from -30°C to +70°C.

Feature Summary

• Fixed attenuation value of 10 dB for consistent signal reduction
• N-type male-to-female connector configuration for direct inline integration
• Brass construction with nickel plating for mechanical robustness
• Wide frequency coverage up to 3 GHz with low VSWR

Applications

• RF test and measurement setups requiring precise signal level adjustment
• Communication systems needing fixed signal attenuation between components
• Laboratory environments for calibrating RF equipment within the 3 GHz range

Procurement Notes

Verify that the specific order matches the PE7002-10 model number to ensure the correct 10 dB attenuation value. Confirm that the N-type male-to-female interface aligns with existing system cabling requirements. Check that the 1 Watt power rating is sufficient for the intended application's signal levels. Ensure environmental conditions remain within the specified -30°C to +70°C operating range to maintain performance integrity.

Selection Notes

Select this component when a fixed 10 dB reduction is required in an RF chain operating below 3 GHz. Choose this model over adjustable variants if constant attenuation is preferred for stability. Consider the 1 Watt power limit when designing circuits with higher signal strengths. The N-type interface makes it suitable for general-purpose RF interconnects where standard impedance matching is critical.

Part Context

This part belongs to Pasternack's series of connectorized fixed attenuators. These components are engineered for reliable performance in microwave and radio frequency circuits. The product line typically includes various attenuation values and connector types to support diverse engineering needs. This specific model represents a standard solution for basic signal conditioning tasks in professional RF environments.

Replacement Considerations

Direct substitutes must match the 10 dB attenuation, N-type male/female interface, and 1 Watt power rating. Verify that any alternative component supports the same 0 Hz to 3 GHz frequency range. Ensure the replacement maintains the 50 Ohm impedance and similar VSWR characteristics to prevent signal reflection issues.
