PE7002-2

Overview

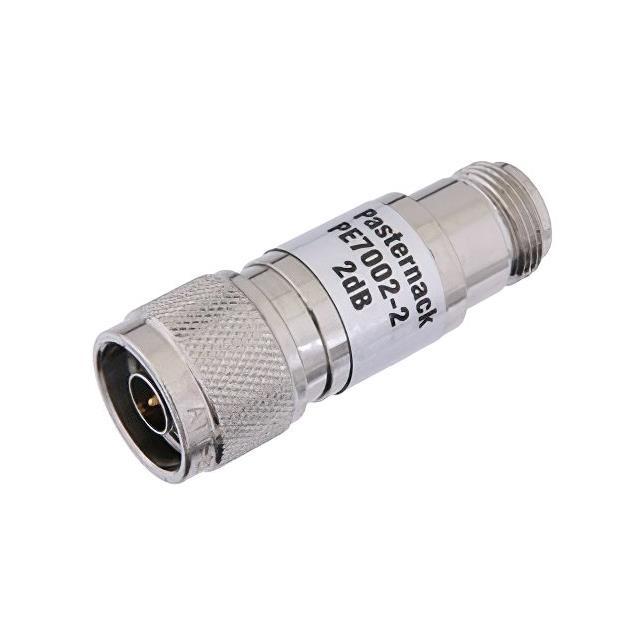

The Pasternack PE7002-2 is a fixed RF attenuator designed for signal reduction in coaxial systems. It features Type-N male to Type-N female connectors and operates within a frequency range of 0 Hz to 3 GHz. The unit provides a nominal attenuation of 2 dB with a maximum VSWR of 1.2:1. Constructed with a brass nickel body, it supports an impedance of 50 ohms and handles up to 1 watt of power. The device functions reliably between -30°C and +70°C.

Feature Summary

• Provides precise 2 dB signal attenuation for RF applications
• Features durable brass nickel construction with Type-N connectors
• Maintains low VSWR for efficient signal transmission

Applications

• RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• General-purpose circuit attenuation

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm connector gender orientation and physical dimensions match design specifications. Check RoHS compliance status if environmental regulations apply. Ensure operating temperature ranges align with intended deployment environments.

Selection Notes

Select this component when a fixed 2 dB reduction is required at frequencies up to 3 GHz. Consider the 1-watt power rating for signal levels within this limit. The Type-N interface suits standard coaxial setups requiring robust mechanical connections. Evaluate space constraints as the inline module has specific physical dimensions.

Part Context

This model belongs to the PE7002 series of connectorized attenuators from Pasternack. The series offers various attenuation values while maintaining consistent Type-N interfaces and frequency performance. These components are engineered for stable operation across defined temperature ranges and impedance standards.

Replacement Considerations

Direct substitutes include other manufacturers' Type-N fixed attenuators with identical 2 dB attenuation and 3 GHz bandwidth. Verify that replacement units match the 50-ohm impedance and 1-watt power handling capabilities. Ensure physical connector dimensions and mounting styles remain compatible with existing infrastructure.
