PE7002-20

Overview

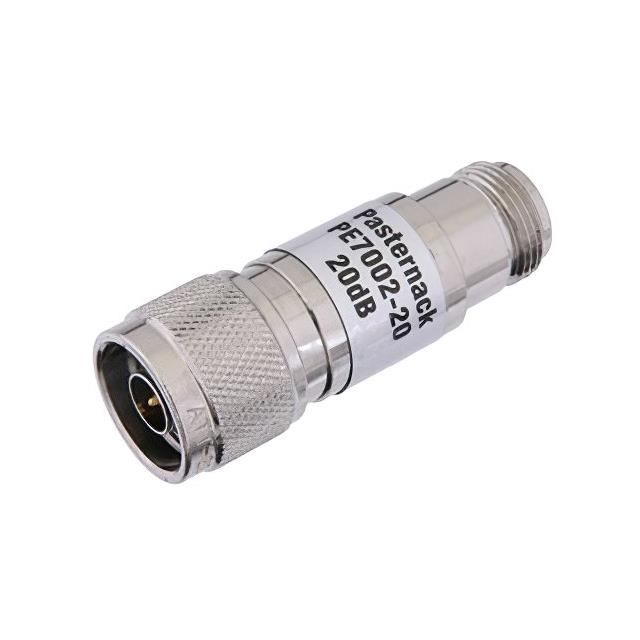

The Pasternack PE7002-20 is a fixed attenuator designed for RF applications with a frequency range of 0 Hz to 3 GHz. It provides a maximum attenuation of 20 dB and features N-type connectors, specifically male on one side and female on the other. The unit has a power rating of 1 W and operates within a temperature range up to +70 C. Constructed with a brass nickel body, it serves as an inline module for signal level adjustment in coaxial systems.

Feature Summary

• Fixed 20 dB attenuation value for precise signal reduction
• N-type connector interface ensuring compatibility with standard coaxial infrastructure
• Brass nickel body construction providing durability and corrosion resistance
• Rated for 1 W power handling capability within specified frequency limits

Applications

• RF signal level adjustment in test and measurement setups
• Impedance matching and protection in communication systems
• Signal attenuation in antenna feed lines and distribution networks

Procurement Notes

Verify that the specific order matches the PE7002-20 part number to ensure correct 20 dB attenuation and N-type gender configuration. Confirm that the required frequency range extends to 3 GHz and that the 1 W power rating meets system requirements. Check datasheet specifications for operating temperature limits and physical dimensions prior to integration.

Selection Notes

Select this component when a fixed 20 dB reduction is required between N-type connectors. Ensure the application does not exceed 1 W power or 3 GHz frequency. Consider the male-to-female gender arrangement for direct inline connection without additional adapters. Verify environmental conditions align with the +70 C maximum operating temperature specification.

Part Context

This model belongs to Pasternack's line of connectorized attenuators. It is distinct from variable attenuators and other fixed values like the PE7002-2. The product utilizes standard N-type interfaces common in RF engineering. It is categorized under interconnects for signal conditioning purposes.

Replacement Considerations

Direct substitutes must match the 20 dB attenuation, N-type connectors, and 3 GHz frequency range. Verify power rating compatibility at 1 W. Ensure gender configuration (male to female) aligns with existing cabling. Cross-reference manufacturer datasheets for equivalent performance metrics.
