PE7002-30

Overview

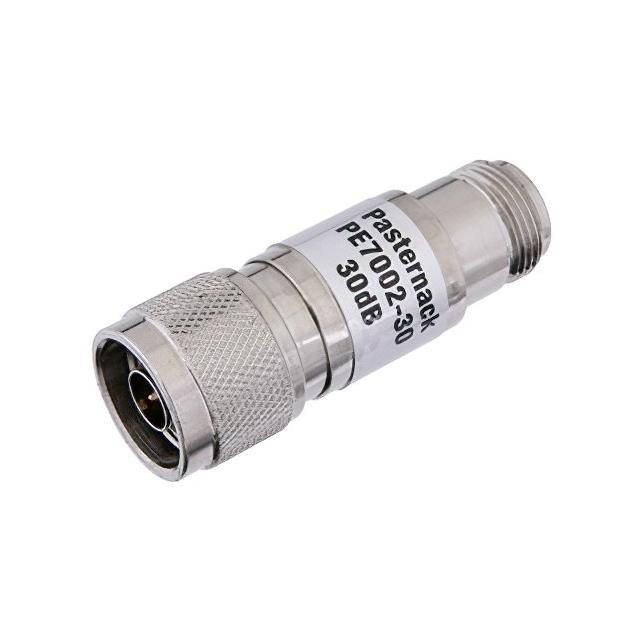

The Pasternack PE7002-30 is a fixed 30 dB attenuator designed for RF interconnect applications. It features N-type male to N-type female connectors with a brass nickel-plated body. The component operates within a frequency range of 0 Hz to 3 GHz and supports a maximum power rating of 1 Watt. It maintains an impedance of 50 ohms and exhibits a VSWR of 1.2:1. The unit functions reliably within an operating temperature range of -30°C to +70°C.

Feature Summary

• Fixed attenuation value of 30 dB for signal level reduction
• N-type male to N-type female connector interface
• Brass construction with nickel plating for durability
• Rated for 1 Watt power handling up to 3 GHz

Applications

• RF test and measurement setups requiring precise signal attenuation
• Embedded systems integration for signal conditioning
• Industrial automation electronics interfacing

Procurement Notes

Verify the specific datasheet version when ordering, as some sources indicate a 2 GHz limit while others confirm 3 GHz capability. Confirm that the brass nickel body matches your environmental requirements. Ensure the N-type gender configuration aligns with your existing cable assembly standards before finalizing procurement.

Selection Notes

Select this model when a fixed 30 dB loss is required in a 50-ohm system. The N-type interface suits higher-power applications compared to smaller connectors. Consider the 1 Watt power rating against your peak signal levels. The wide frequency range up to 3 GHz provides flexibility for various RF testing scenarios without needing multiple specialized components.

Part Context

This component belongs to Pasternack's connectorized attenuator series. It serves as a passive RF device to reduce signal amplitude by a fixed amount. The PE7002-30 variant specifically addresses needs for high-isolation or low-level signal generation in coaxial environments using standard N-type connections.

Replacement Considerations

Pasternack PE7002-40 offers 40 dB attenuation with similar construction. Pasternack PE7002-10 provides 10 dB attenuation. Verify connector gender and frequency limits when substituting with other manufacturers' N-type fixed attenuators.
