PE7002-40

Overview

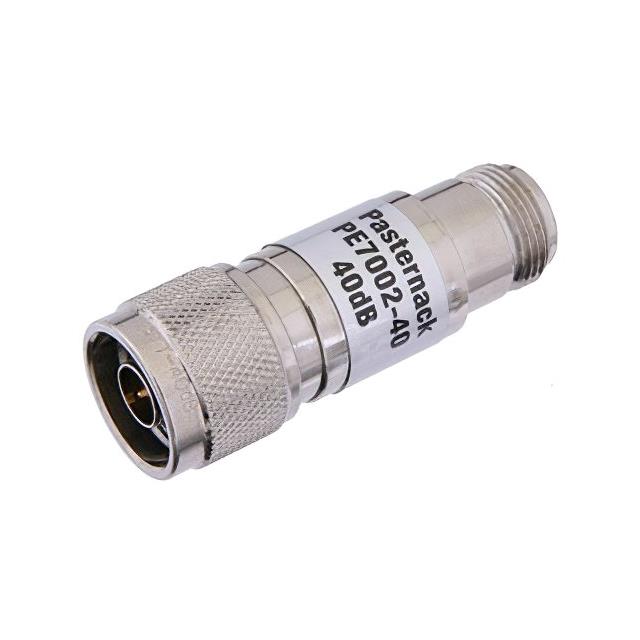

The Pasternack PE7002-40 is a fixed coaxial attenuator designed for RF applications. It provides an attenuation value of 40 dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of DC to 3 GHz. It features N-Type connectors, specifically a male connector on one side and a female connector on the other. The unit is rated for a maximum power handling capacity of 1 Watt. The construction utilizes a brass body with a nickel finish.

Feature Summary

• Provides precise signal reduction in transmission lines
• Ensures impedance matching between connected components
• Supports high-frequency operation up to 3 GHz

Applications

• RF and microwave circuit testing
• Signal level adjustment in communication systems
• Protection of sensitive receiver inputs

Procurement Notes

Verify that the specific part number matches the required attenuation value and connector gender configuration. Confirm that the operating frequency range and power rating align with the system requirements. Ensure compatibility with existing N-Type interfaces before integration into the design.

Selection Notes

Choose this component when a fixed 40 dB reduction is necessary within the 3 GHz bandwidth. Consider the 1W power limit for thermal management. Select based on the need for reliable performance in standard 50 Ohm environments without requiring variable adjustment capabilities.

Part Context

This model belongs to the PE7002 series of fixed attenuators from Pasternack. The series offers various attenuation values while maintaining consistent connector types and frequency specifications. It serves as a standard passive component for linear signal processing tasks.

Replacement Considerations

Compatible substitutes include models with identical 40 dB attenuation, N-Type male-to-female configuration, and 3 GHz frequency limits. Verify that alternative parts meet the same 50 Ohm impedance and 1W power rating standards.
