PE7002-6

Overview

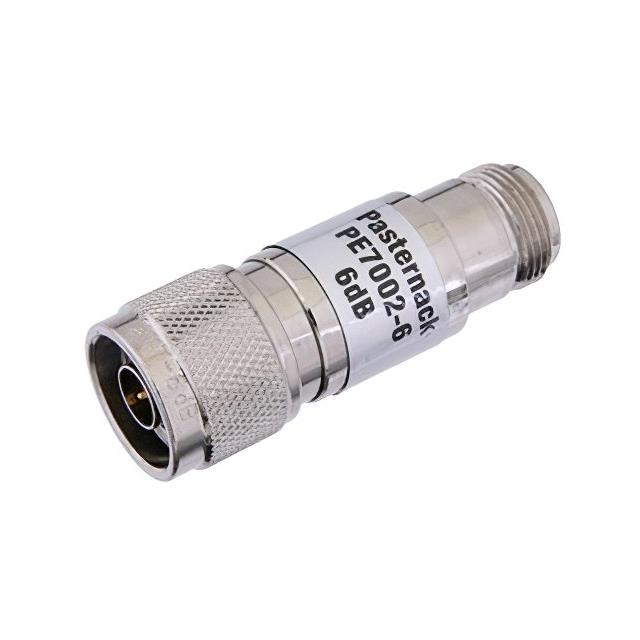

The Pasternack PE7002-6 is a fixed RF attenuator designed for in-line signal reduction. It provides a nominal attenuation of 6 dB across a frequency range of 0 Hz to 3 GHz. The component features N-type connectors, with a male gender on one side and a female gender on the other, facilitating straightforward integration into coaxial systems. Constructed with a brass body finished in nickel plating, it ensures durability and corrosion resistance. The unit is rated for a maximum power handling capacity of 1 Watt. It maintains a maximum Voltage Standing Wave Ratio (VSWR) of 1.2:1, ensuring efficient signal transmission with minimal reflection within its specified operational bandwidth.

Feature Summary

• Fixed 6 dB attenuation value for consistent signal level control
• Broadband operation from DC to 3 GHz frequency range
• N-type connector interface with mixed male and female genders
• Nickel-plated brass housing for mechanical robustness

Applications

• RF test and measurement setups requiring precise signal reduction
• Wireless communication system signal conditioning
• Laboratory equipment input/output protection
• Antenna feed line attenuation applications

Procurement Notes

Verify that the specific order matches the PE7002-6 designation to ensure the correct 6 dB attenuation value, as the PE7002 series includes various attenuation levels. Confirm connector gender configuration aligns with system requirements, noting this model typically combines male and female ends. Check that the 1 Watt power rating and 3 GHz frequency limit are sufficient for the intended application environment. Ensure compatibility with standard N-type mating connectors to maintain proper impedance matching and VSWR performance.

Selection Notes

Select the PE7002-6 when a fixed 6 dB reduction is required within a 50 Ohm system operating up to 3 GHz. Consider the N-type interface compatibility with existing cabling infrastructure. Evaluate the 1 Watt power handling capability against peak and average signal levels to prevent damage. The brass nickel construction offers a balance of cost-effectiveness and performance for general-purpose RF applications where high-power or extreme environmental conditions are not primary concerns.

Part Context

This component belongs to the Pasternack PE7002 series of fixed attenuators, which share a common form factor and connector type but vary in attenuation values. Other models in this series include different dB ratings such as 10 dB, 20 dB, and 40 dB, all utilizing similar N-type interfaces and brass nickel bodies. This series is designed for standardized RF testing and signal management tasks requiring reliable, low-reflection attenuation.

Replacement Considerations

Direct substitutes must match the 6 dB attenuation, N-type male-to-female configuration, 50 Ohm impedance, and 3 GHz frequency range. Verify that alternative components meet or exceed the 1 Watt power rating and 1.2:1 VSWR specifications. Ensure physical dimensions and mounting style are compatible with the existing assembly.
