PE7003-3

Overview

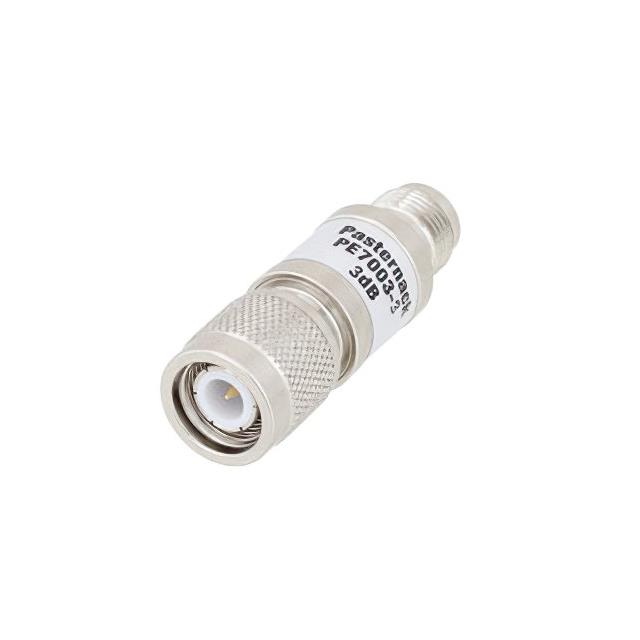

The Pasternack PE7003-3 is a fixed RF attenuator featuring TNC male to TNC female connectors. It provides a nominal attenuation of 3 dB across a frequency range from DC to 2 GHz. The unit is rated for a maximum power handling of 2 Watts at the stated attenuation value. Constructed with a brass nickel body, it maintains a 50 Ohm impedance system.

Feature Summary

• Fixed 3 dB attenuation value
• TNC male to TNC female interface
• Brass nickel body construction

Applications

• RF signal level reduction in test setups
• Impedance matching between 50 Ohm components
• Protection of sensitive receiver inputs

Procurement Notes

Verify the specific connector gender and attenuation value against project requirements. Confirm that the 2 Watt power rating and 2 GHz frequency limit align with operational parameters. Ensure compatibility with existing TNC mating hardware before integration.

Selection Notes

Select this component when a precise 3 dB loss is required within the 2 GHz bandwidth. The TNC interface suits applications needing robust mechanical connections. Verify that the 2 Watt power capacity exceeds peak signal levels to prevent damage.

Part Context

This part belongs to Pasternack's line of connectorized attenuators designed for microwave and RF systems. It serves as a passive component for managing signal strength without introducing significant distortion or reflection within its specified operating range.

Replacement Considerations

Compatible substitutes include other 3 dB TNC fixed attenuators from manufacturers such as CRYSTEK CORPORATION (e.g., CATTEN-03R0) or Mini-Circuits, provided they meet the 50 Ohm impedance and 2 GHz frequency specifications.
