PE7004-15

$240.44

Description：15 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:ecf5f248c121 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：15 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：15dB
Frequency Range：0 Hz ~ 18 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7004-15

Overview

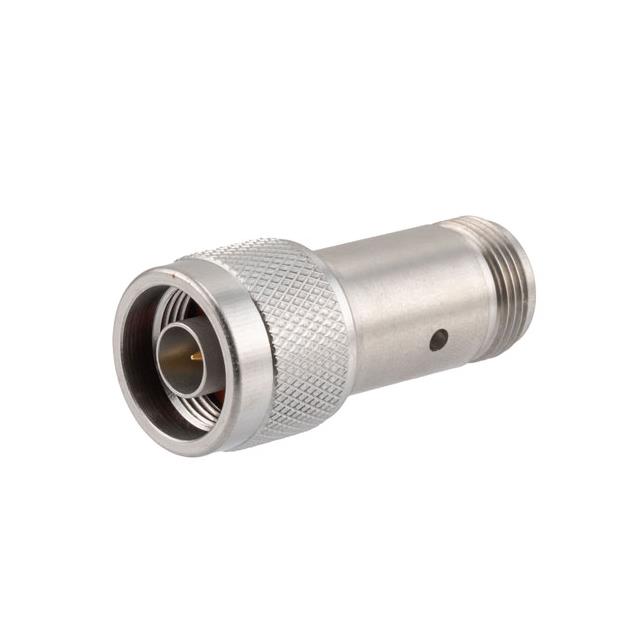

The Pasternack PE7004-15 is a fixed RF attenuator providing 15 dB attenuation with N male to N female connectors. It operates up to 18 GHz and handles 2 Watts at the rated value. The unit features a passivated stainless steel body for durability.

Feature Summary

Fixed 15 dB attenuation
N male to N female interface
Passivated stainless steel construction

Applications

RF signal level reduction
Impedance matching in microwave circuits
Test and measurement setups

Procurement Notes

Verify the specific connector gender configuration and frequency rating against system requirements. Confirm power handling capabilities match operational loads. Check datasheet for detailed VSWR and return loss specifications before integration.

Selection Notes

Select this model for applications requiring precise 15 dB signal reduction within the 18 GHz range. Ensure the N-type connector interface aligns with existing cabling infrastructure. Consider the stainless steel housing for environmental protection.

Part Context

This component belongs to Pasternack's fixed attenuator series, designed for reliable performance in RF systems. It provides consistent attenuation values across its specified bandwidth, supporting stable signal integrity in various microwave applications.

Replacement Considerations

Compatible substitutes include other 15 dB N-type fixed attenuators from Pasternack, such as those in the PE7004 series with similar frequency and power ratings.
