PE7004-5

Overview

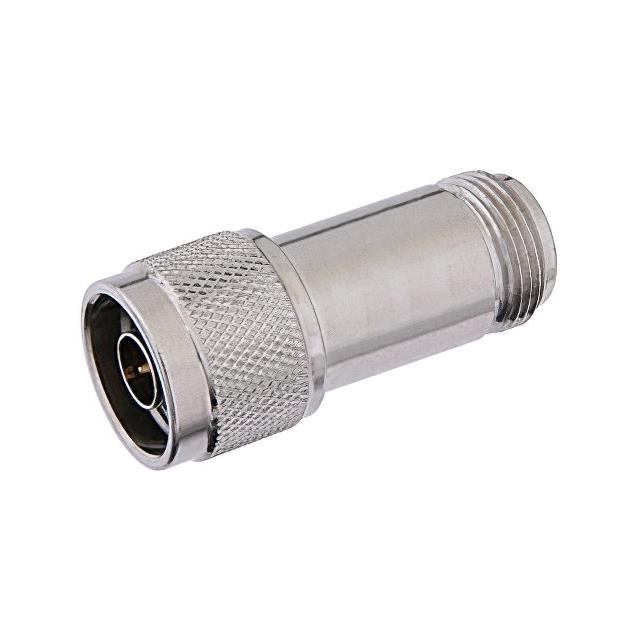

The Pasternack PE7004-5 is a 5 dB fixed attenuator featuring Type N male to Type N female connectors. It utilizes a passivated stainless steel body and is rated for up to 2 watts of power handling with operation frequencies extending to 18 GHz.

Feature Summary

• Fixed 5 dB attenuation value
• Passivated stainless steel construction
• Type N connector interface

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal conditioning in microwave systems

Procurement Notes

Verify the specific part number PE7004-5 against official Pasternack documentation to confirm the 5 dB attenuation rating, 18 GHz frequency limit, and 2-watt power handling specifications. Ensure compatibility with existing Type N connector interfaces before procurement.

Selection Notes

Select this component when a precise 5 dB attenuation is required within an 18 GHz bandwidth. The stainless steel body offers durability for high-power applications up to 2 watts. Confirm that Type N connectors match the system requirements.

Part Context

This model belongs to Pasternack's connectorized attenuator series, designed for RF and microwave applications. It provides stable attenuation performance using robust metal housing materials suitable for demanding environments.

Replacement Considerations

Compatible substitutes include PE7004-10 (10 dB) and PE7004-20 (20 dB) from the same series if different attenuation values are needed. Ensure identical connector types and frequency ratings.
