PE7004-8

Overview

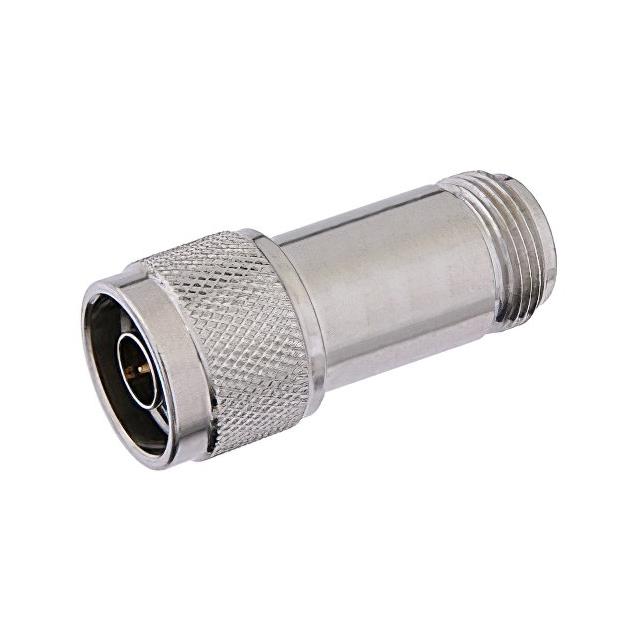

The Pasternack PE7004-8 is an 8 dB fixed attenuator featuring N Male to N Female connectors. It operates within a frequency range of DC to 18 GHz and handles a power rating of 2 Watts at the specified attenuation value. The device utilizes a passivated stainless steel body for durability.

Feature Summary

• Fixed 8 dB attenuation value
• N Male to N Female connector configuration
• Passivated stainless steel construction

Applications

• RF signal level reduction in microwave systems
• Impedance matching in high-frequency circuits
• Signal conditioning up to 18 GHz

Procurement Notes

Verify the specific datasheet version for the PE7004-8, as manufacturer documentation may vary. Confirm that the N Male to N Female gender combination matches your system requirements. Ensure the 2 Watt power rating is sufficient for your application's peak signal levels before finalizing procurement.

Selection Notes

Select this component when a precise 8 dB reduction is required across a broad bandwidth up to 18 GHz. The N-type interface offers robust mechanical stability compared to smaller connectors. Consider the 2 Watt power limit carefully; higher power applications may require alternative models with greater thermal handling capabilities.

Part Context

This model belongs to Pasternack's line of fixed coaxial attenuators designed for general-purpose RF applications. It provides a stable, non-adjustable attenuation value, contrasting with variable or step attenuator series. The stainless steel housing ensures environmental resistance suitable for various industrial and laboratory settings.

Replacement Considerations

No public substitute part numbers are documented.
