PE7005-15

Overview

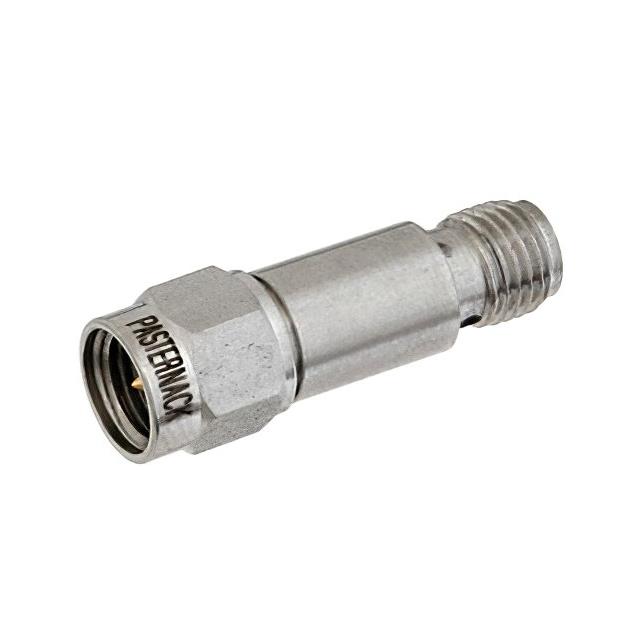

The PE7005-15 is a fixed attenuator manufactured by Pasternack Enterprises. It provides an attenuation value of 15 dB with an accuracy of ±0.5 dB. The device operates within a frequency range of DC to 18 GHz and supports a maximum input power of 2 Watts continuous wave. It features SMA male to SMA female connectors and utilizes a passivated stainless steel body. The unit maintains a voltage standing wave ratio (VSWR) of less than 1.35:1 across its operational bandwidth.

Feature Summary

• Bidirectional signal attenuation capability
• Passivated stainless steel construction for durability
• SMA connector interface for secure attachment

Applications

• RF instrumentation testing
• Precision measurement systems
• Signal level adjustment in microwave circuits

Procurement Notes

Verify the specific datasheet version for the PE7005-15 to confirm current manufacturing status and compliance details. Ensure that the required attenuation tolerance and power handling capabilities align with your system design specifications before finalizing procurement. Cross-reference the connector type and frequency range with your existing test equipment interfaces.

Selection Notes

Select this component when a precise 15 dB reduction is required at frequencies up to 18 GHz. The passivated stainless steel body offers robustness suitable for laboratory environments. Consider the SMA interface compatibility with your source and load devices. Verify that the 2 Watt power rating exceeds the maximum expected signal level in your application to prevent damage.

Part Context

This part belongs to the PE7005 series of connectorized attenuators from Pasternack. The series includes various attenuation values, such as 1 dB and 15 dB options, all sharing similar physical dimensions and connector types. These components are designed for general-purpose RF applications requiring stable performance over a wide frequency range.

Replacement Considerations

Direct substitutes include other PE7005 series models with different attenuation values if the dB requirement changes. Generic replacements must match the SMA male-to-female configuration, 15 dB nominal value, and 18 GHz frequency limit. Ensure any alternative component meets the same VSWR and power handling specifications.
