PE7005-30

Overview

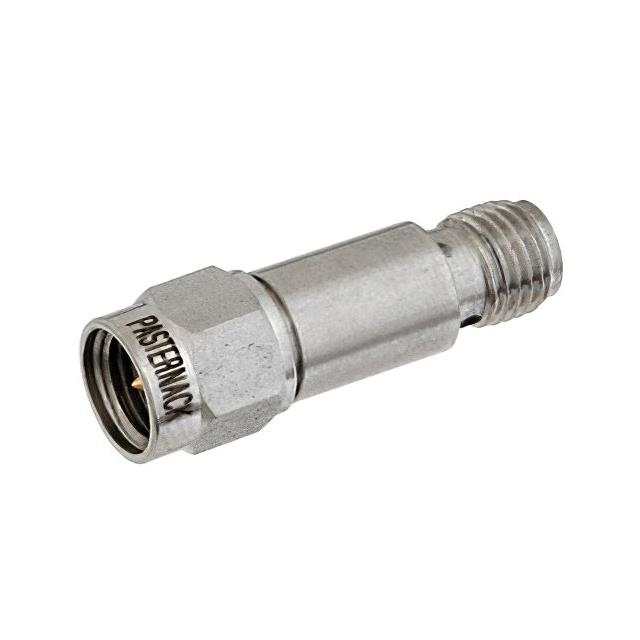

The Pasternack PE7005-30 is a fixed RF attenuator module featuring SMA male to SMA female connectors. It provides a nominal attenuation of 30 dB with a maximum operating frequency of 18 GHz. The device supports a power rating of 2 Watts and maintains a 50 Ohm impedance. Key electrical specifications include a VSWR of 1.4:1 and an insertion loss of 0.2 dB. The unit utilizes a passivated stainless steel body for durability.

Feature Summary

• Fixed 30 dB attenuation performance across the operational bandwidth
• SMA male to SMA female inline connector configuration
• Passivated stainless steel housing for environmental resistance

Applications

• RF signal level reduction in microwave test setups
• Impedance matching and isolation in high-frequency circuits
• Signal conditioning within communication system architectures

Procurement Notes

Verify the specific datasheet version for the PE7005-30 to confirm current manufacturing status and detailed mechanical drawings. Ensure that the SMA connector gender and passivation specifications align with the target application requirements before finalizing procurement orders.

Selection Notes

Select this component when a precise 30 dB attenuation value is required at frequencies up to 18 GHz. The 2 Watt power handling capability suits moderate power applications, while the SMA interface ensures compatibility with standard coaxial systems requiring 50 Ohm impedance.

Part Context

This model belongs to Pasternack's line of fixed attenuators designed for microwave and radio frequency applications. It serves as a passive component for managing signal strength without introducing significant distortion or reflection within the specified frequency range.

Replacement Considerations

Consider models such as PE7002-30 for N-type connector interfaces or other Pasternack SMA variants if different power ratings or connector types are needed. Verify frequency limits and physical dimensions when substituting.
