PE7005-40

Overview

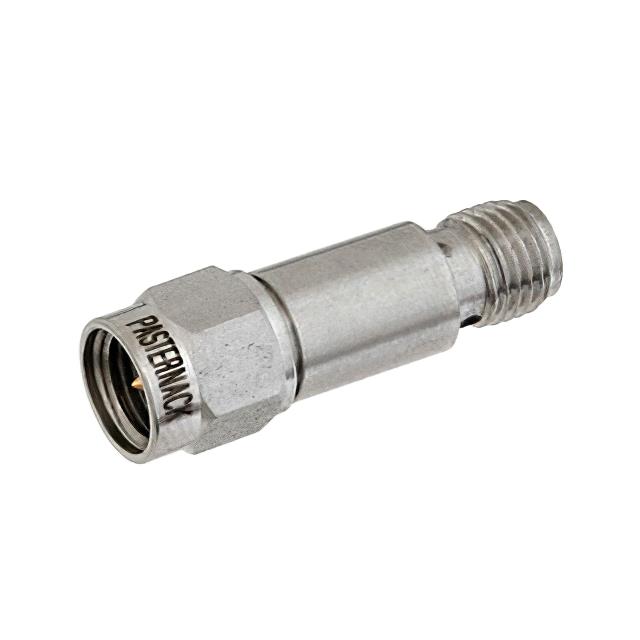

The Pasternack PE7005-40 is a fixed attenuator designed for RF applications up to 18 GHz. It features SMA male to SMA female connectors and provides a precise attenuation value of 40 dB. The unit is rated for 2 Watts of power at the stated attenuation level. Constructed with passivated stainless steel, it ensures durability in demanding environments.

Feature Summary

• Provides fixed 40 dB attenuation across a wide frequency range
• Utilizes SMA male-to-female connector interface
• Rated for 2 Watts maximum power handling
• Constructed from passivated stainless steel for corrosion resistance

Applications

• RF signal testing and measurement setups
• Microwave circuit design and development
• Signal level reduction in high-frequency systems

Procurement Notes

Verify the specific connector gender configuration and power rating against system requirements before ordering. Confirm that the 40 dB attenuation value aligns with the intended signal processing needs. Ensure compatibility with SMA interfaces in the target application environment.

Selection Notes

Select this component when a fixed 40 dB loss is required within an 18 GHz bandwidth. Consider the 2 Watt power limit for thermal management. The SMA interface suits standard laboratory and industrial RF test equipment connections.

Part Context

This part belongs to Pasternack's line of connectorized attenuators. It serves as a passive component for controlling signal amplitude in microwave and RF circuits without introducing significant distortion or reflection.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
