PE7005-5

Overview

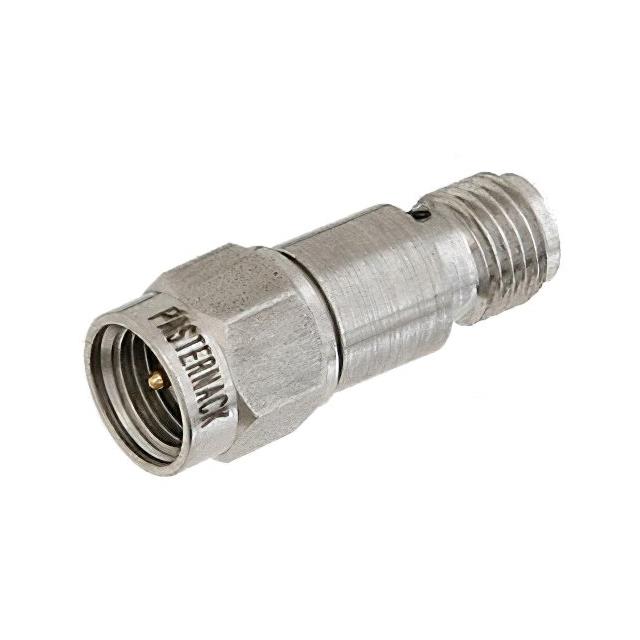

The PE7005-5 is a fixed positive voltage regulator component manufactured by Pasternack, specifically designed as a 5 dB attenuator. It features SMA male to SMA female connectors and utilizes a passivated stainless steel body for durability. The device operates within a frequency range of 0 Hz to 18 GHz and supports a maximum power handling capacity of 2 Watts at the stated attenuation value. The unit weighs approximately 171.458 grams and is packaged in bulk quantities.

Feature Summary

• Fixed 5 dB attenuation value maintained across the operational bandwidth
• SMA male to SMA female inline connector configuration
• Passivated stainless steel housing for environmental resistance
• Rated for 2 Watts power handling at specified attenuation

Applications

• RF signal level reduction in microwave circuits
• Impedance matching between RF stages
• Signal attenuation in test and measurement setups

Procurement Notes

Verify the specific datasheet version for the PE7005-5 to confirm electrical tolerances and mechanical dimensions. Ensure compatibility with SMA interfaces in the target system. Check for any recent manufacturing updates or compliance certifications required for integration. Confirm availability through authorized distributors as supply status may vary.

Selection Notes

Select the PE7005-5 when a precise 5 dB fixed attenuation is required up to 18 GHz. Consider the 2 Watt power rating against system signal levels. The SMA interface dictates connector compatibility with existing hardware. The stainless steel body offers robustness for demanding environments compared to plastic alternatives.

Part Context

This component belongs to the Pasternack series of connectorized attenuators. It serves as a passive RF device used to control signal strength without introducing significant distortion. The design focuses on maintaining impedance stability while providing consistent attenuation across a wide frequency spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify if other Pasternack models with similar attenuation values and SMA interfaces meet the specific application requirements before sourcing alternatives.
