PE7005-6

Overview

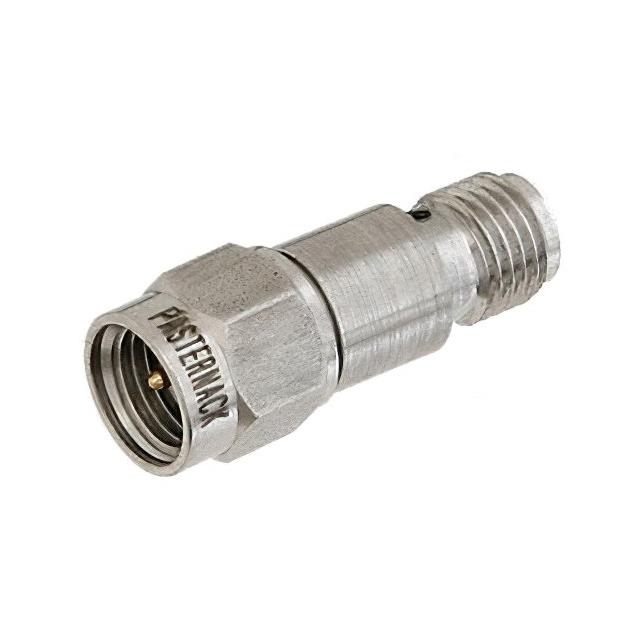

The Pasternack PE7005-6 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 6 dB and operates within a frequency range from 0 Hz to 18 GHz. The device features SMA male-to-SMA female connectors, ensuring compatibility with standard coaxial systems. It is rated to handle up to 2 Watts of power at the specified attenuation level. The unit utilizes a passivated stainless steel body for durability and signal integrity in demanding environments.

Feature Summary

• Fixed 6 dB attenuation performance across a wide microwave frequency spectrum
• SMA male to SMA female interface configuration for direct inline integration
• Passivated stainless steel housing construction for environmental resistance

Applications

• Microwave test and measurement setups requiring precise signal reduction
• RF system calibration and characterization procedures
• Signal conditioning in communication equipment operating up to 18 GHz

Procurement Notes

Verify the specific connector gender and impedance matching requirements against your system design before procurement. Confirm that the 2-watt power rating aligns with your operational signal levels to prevent damage. Ensure the SMA interface type matches existing cabling infrastructure. Check for any RoHS compliance documentation if required by your manufacturing standards. Validate the frequency range coverage meets your application's upper limit needs.

Selection Notes

Select this component when a stable 6 dB loss is required in the 18 GHz band. Consider the SMA interface compatibility with your current interconnects. Evaluate the 2-watt power handling capability against peak signal strengths. Compare physical dimensions if space constraints exist in the assembly. Verify the passivated stainless steel material suits the environmental conditions of the installation site.

Part Context

This component belongs to the Pasternack line of fixed RF attenuators. These devices are engineered to provide consistent signal reduction without active components. The series supports various attenuation values and frequency ranges. The PE7005-6 specifically targets applications needing reliable performance in the microwave region. It serves as a passive element in complex RF signal chains.

Replacement Considerations

Check for other Pasternack models with identical 6 dB attenuation and 18 GHz bandwidth. Verify connector types match exactly to avoid adapter usage. Ensure power ratings meet or exceed the original specification. Confirm physical footprint compatibility if mounting space is limited.
