PE7005-7

Overview

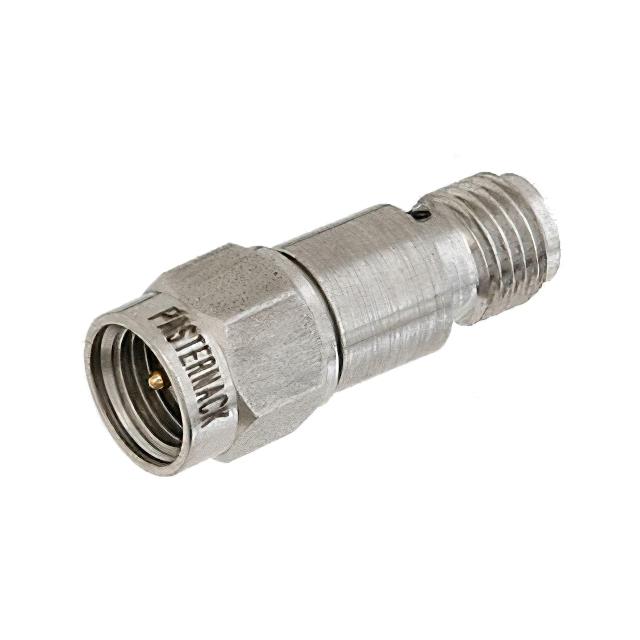

The Pasternack PE7005-7 is a 7 dB fixed attenuator designed for RF applications up to 18 GHz. It features SMA male-to-female connectors and utilizes a passivated stainless steel body. The component is rated to handle 2 Watts of power. This attenuator provides precise signal reduction within its specified frequency range, ensuring stable performance in high-frequency test and measurement environments.

Feature Summary

• Fixed 7 dB attenuation value
• SMA male to female interface
• Passivated stainless steel construction
• Operational frequency up to 18 GHz

Applications

• RF signal level adjustment
• Test and measurement setups
• Circuit protection via attenuation
• High-frequency system integration

Procurement Notes

Verify the exact model designation against official Pasternack documentation to confirm the 7 dB value and SMA connector type. Ensure compatibility with existing SMA interfaces in your system. Check for any specific environmental ratings or power handling requirements relevant to your application before finalizing procurement.

Selection Notes

Select this component when a precise 7 dB reduction is required at frequencies up to 18 GHz. The SMA interface suits standard coaxial systems. Consider the 2 Watt power rating for thermal management. Verify that the stainless steel body meets mechanical durability needs for the intended deployment environment.

Part Context

This part belongs to Pasternack's line of fixed attenuators. It serves as a passive component for managing signal strength in RF circuits. The design focuses on maintaining impedance consistency while providing reliable attenuation across a broad microwave frequency spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult manufacturer catalogs for equivalent SMA fixed attenuators with matching 7 dB specifications and 18 GHz limits.
