PE7005-8

Overview

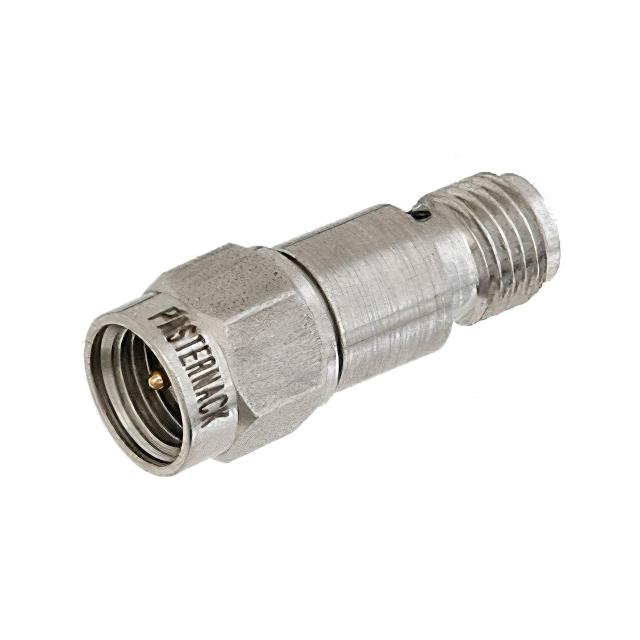

The PE7005-8 is a fixed attenuator manufactured by Pasternack, designed for radio frequency applications. It provides an attenuation value of 8 dB with a maximum operating frequency range extending from 0 Hz to 18 GHz. The component utilizes SMA connectors in a male-to-female inline configuration and features a passivated stainless steel body. It is rated for a power handling capacity of 2 watts. This assembly serves as a precision interconnect solution for signal level adjustment within RF test and measurement systems.

Feature Summary

• Provides precise 8 dB signal attenuation across a wide frequency spectrum up to 18 GHz
• Constructed with a durable passivated stainless steel housing for environmental resilience
• Features SMA male to SMA female connectors for standard inline integration

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching and isolation between circuit stages
• Signal conditioning in high-frequency communication systems

Procurement Notes

Verify the specific connector gender configuration and power rating against system requirements before procurement. Confirm that the SMA interface compatibility matches existing equipment ports. Ensure the 2-watt power handling capability exceeds the maximum expected signal power in the application path to prevent component damage or performance degradation during operation.

Selection Notes

Select this model when a fixed 8 dB attenuation value is required within the 18 GHz bandwidth. Consider the SMA interface type for compatibility with standard RF infrastructure. Evaluate the 2-watt power rating against peak signal levels. The stainless steel construction offers durability suitable for laboratory or industrial environments requiring consistent performance over time.

Part Context

This component belongs to the Pasternack line of RF attenuators, specifically designed for fixed attenuation needs. It fits within the broader category of passive RF components used for signal management. The product series emphasizes reliability and precision for engineers requiring stable attenuation characteristics in high-frequency circuits without active power sources.

Replacement Considerations

Substitute only with other 8 dB fixed attenuators featuring SMA male-to-female interfaces and compatible power ratings. Verify that alternative models support the same 18 GHz frequency range. Ensure physical dimensions and mounting styles match the existing installation constraints to maintain system integrity.
