PE7008-1

Overview

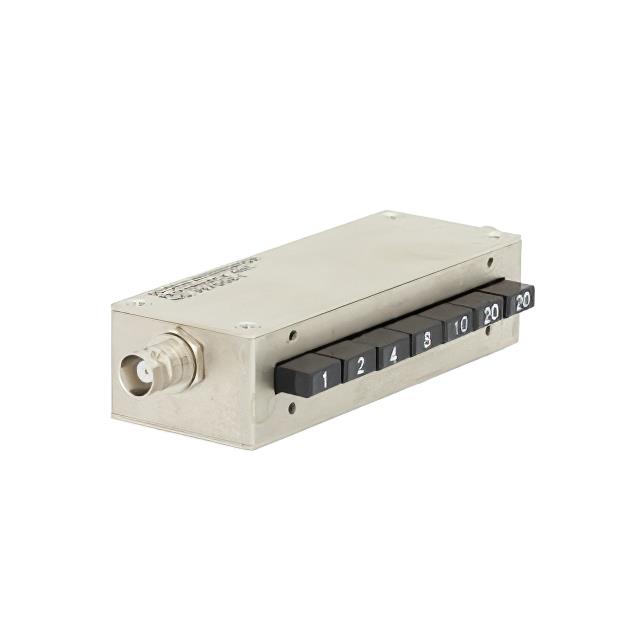

The PE7008-1 is a push-button step attenuator manufactured by Pasternack. It features BNC female connectors on both input and output ports. The device provides an attenuation range from 0 dB to 65 dB with 1 dB step sizes. It operates within a frequency range up to 750 MHz and is rated for 1 Watt of power.

Feature Summary

• Push-button control mechanism for manual attenuation adjustment
• BNC female-to-female connector interface configuration
• Continuous variable attenuation capability via discrete steps

Applications

• RF signal level testing and measurement setups
• Laboratory instrumentation requiring precise signal reduction
• Telecommunications equipment maintenance and calibration

Procurement Notes

Verify the specific datasheet version to confirm the exact maximum attenuation value, as sources indicate variations between 45.5 dB and 65 dB. Ensure the operating frequency requirement does not exceed 750 MHz. Confirm that the BNC female interface matches the system requirements. Check for any specific handling instructions regarding the push-button mechanism.

Selection Notes

Select this component when a manual, stepped attenuation solution is required for frequencies below 750 MHz. The BNC interface makes it suitable for standard laboratory test environments. Consider the 1 Watt power rating for signal levels. This model is appropriate for applications needing precise 1 dB resolution adjustments rather than fixed or continuously variable analog attenuators.

Part Context

This part belongs to the Pasternack attenuator product line, specifically designed for RF interconnects. It serves as a passive component for managing signal strength in radio frequency circuits. The series includes various connector types and attenuation ranges, positioning this unit as a specialized tool for benchtop testing and signal conditioning tasks.

Replacement Considerations

PE7489-20 (Amphenol XMA), FMAT7489-20 (Fairview Microwave). Verify connector type compatibility as replacements may differ.

FAQ

What is the maximum operating frequency?

The maximum operating frequency is 750 MHz.

What is the power rating?

The device is rated for 1 Watt.
