Product Detailed Parameters
- Description：0 TO 102 DB PUSH BUTTON STEP ATT
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Attenuation Value：0dB ~ 102dB
- Frequency Range：0 Hz ~ 750 MHz
- Power (Watts)：1W
- Impedance：50 Ohms
- Grade：-
- Qualification：-
- Package / Case：Module
Download product information
Overview

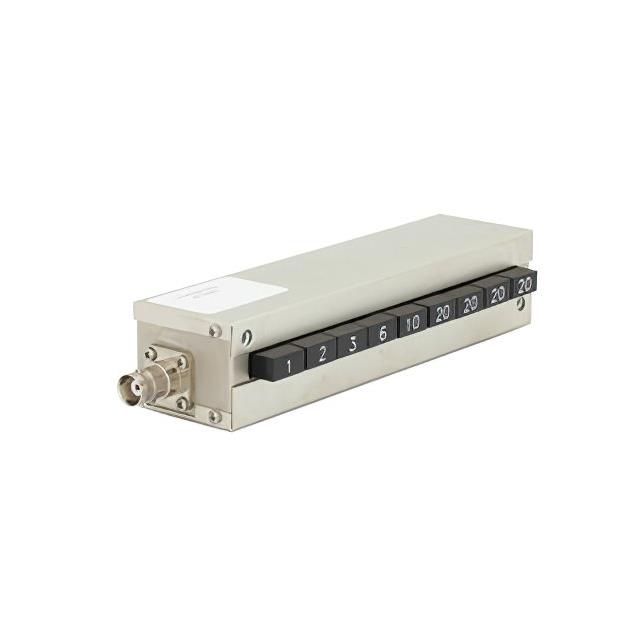

The Pasternack PE7008-5 is a coaxial RF step attenuator featuring BNC female connectors on both input and output ports. It provides a variable attenuation range from 0 dB to 102 dB with precise 1 dB step sizes. The device is rated for a maximum power handling of 1 Watt and operates effectively up to a frequency of 750 MHz. This component is designed for applications requiring adjustable signal reduction in radio frequency circuits.
Feature Summary
- Provides continuous variable attenuation from 0 to 102 dB
- Features 1 dB resolution steps for precise signal control
- Utilizes BNC female connectors for standard interfacing
- Rated for 1 Watt maximum power handling
Applications
- RF signal level adjustment in test and measurement equipment
- Signal conditioning in communication systems
- Attenuation requirements in laboratory setups
Procurement Notes
Verify the specific model number PE7008-5 against official Pasternack documentation to confirm the 102 dB range and 1W rating. Ensure connector types match system requirements. Check for RoHS compliance status if required by project specifications. Confirm operating frequency limits align with application needs.
Selection Notes
Select this component when variable attenuation up to 102 dB is required with 1 dB precision. Ensure the system voltage and power levels do not exceed 1 Watt. Verify that BNC female interfaces are compatible with existing cabling and equipment ports. Consider frequency response up to 750 MHz for signal integrity.
Part Context
This part belongs to Pasternack's line of BNC step attenuators, which offer push-button controlled attenuation values. These devices are commonly used in RF engineering for calibrating signals and managing power levels in coaxial networks without permanent hardware changes.
Replacement Considerations
Check for exact functional equivalents with identical BNC female interfaces and 102 dB max attenuation. Verify matching 1 dB step resolution and 1W power rating. Ensure frequency coverage meets or exceeds 750 MHz requirements.
