PE7009-6

Overview

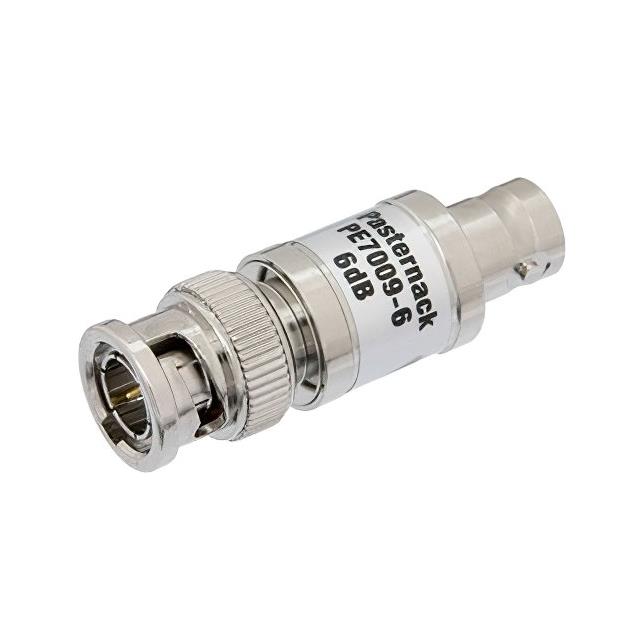

The PE7009-6 is a fixed 6 dB attenuator manufactured by Pasternack. It operates within a frequency range of 0 Hz to 1 GHz and features an impedance of 75 Ohms. The device utilizes a BNC male-to-BNC female in-line module configuration with a brass nickel body. It is rated for a power handling capacity of 1 Watt.

Feature Summary

• Fixed 6 dB attenuation value
• In-line resistive PI attenuator pad design
• Coaxial 75 Ohm impedance matching

Applications

• RF signal level reduction in 75 Ohm systems
• Signal conditioning up to 1 GHz
• Test and measurement equipment interconnects

Procurement Notes

Verify the specific connector gender configuration (BNC male to BNC female) and impedance rating (75 Ohms) against system requirements. Confirm that the 1 Watt power rating and 1 GHz frequency limit align with operational parameters before integration.

Selection Notes

Select this component for applications requiring precise 6 dB signal reduction in 75 Ohm environments. Ensure the operating frequency does not exceed 1 GHz and power levels remain within the 1 Watt limit. The BNC interface compatibility must match existing cabling infrastructure.

Part Context

This part belongs to Pasternack's line of coaxial attenuators. It serves as a passive RF component designed to reduce signal amplitude without distortion. The unit is distinct from cable assemblies or loads, focusing solely on attenuation functionality within the specified frequency band.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
