PE7010-40

Overview

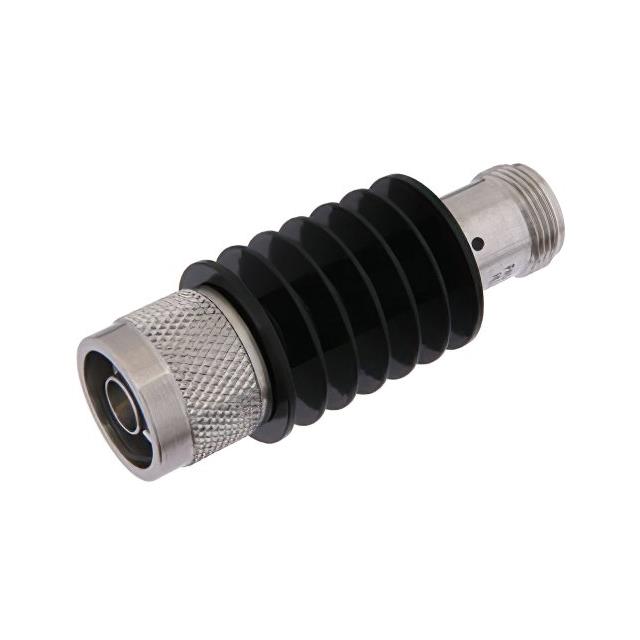

The Pasternack PE7010-40 is a fixed attenuator designed for RF applications, offering an attenuation value of 40 dB. It features Type N connectors with male gender on one side and female gender on the other. The device operates within a frequency range up to 3 GHz and maintains a voltage standing wave ratio (VSWR) of 1.2:1. Constructed with a black anodized aluminum heatsink body, it provides thermal stability and durability for consistent signal management in coaxial systems.

Feature Summary

• Fixed 40 dB attenuation capability for precise signal level reduction
• Type N connector interface ensuring compatibility with standard coaxial infrastructure
• Black anodized aluminum heatsink body for effective thermal dissipation

Applications

• RF signal path attenuation in test and measurement equipment
• Signal conditioning in wireless communication systems
• Component integration in microwave circuit designs

Procurement Notes

Verify the specific datasheet version and manufacturer specifications before procurement. Confirm that the operating frequency and power handling requirements align with system needs. Ensure connector gender and type match the existing infrastructure. Check for any regional compliance certifications such as REACH if required by the application environment.

Selection Notes

Select this component when a fixed 40 dB attenuation is required at frequencies up to 3 GHz. The Type N interface suits applications needing robust mechanical connections. Consider the aluminum heatsink body for environments requiring passive thermal management. Evaluate VSWR performance to ensure minimal signal reflection in high-frequency setups.

Part Context

The PE7010-40 belongs to Pasternack's series of fixed attenuators, which provide stable signal reduction without active components. This model specifically utilizes Type N connectors, suitable for general-purpose RF applications. The series typically includes various attenuation values and connector combinations to support diverse system architectures.

Replacement Considerations

Direct substitutes include models with identical 40 dB attenuation and Type N male-to-female configuration. Verify that replacement parts maintain the same 3 GHz frequency limit and 1.2:1 VSWR specification. Ensure physical dimensions and mounting requirements are compatible with the existing assembly.
