PE7013-1

Overview

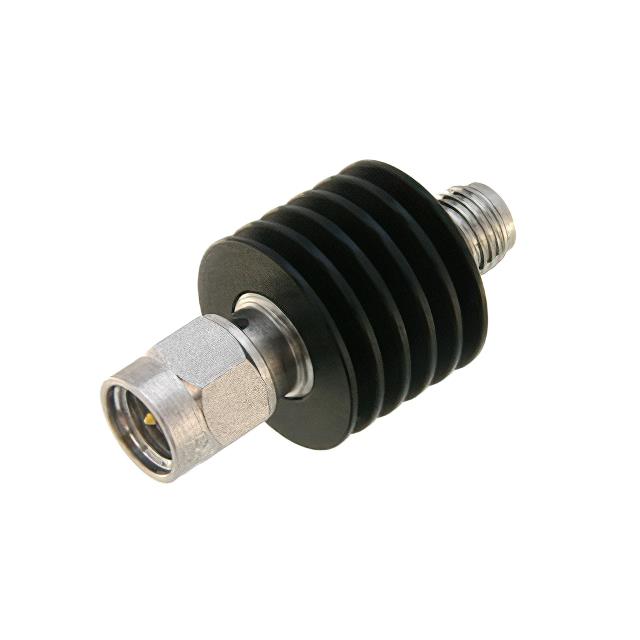

The Pasternack PE7013-1 is a fixed RF attenuator with a nominal attenuation value of 1 dB. It operates within a frequency range of 0 Hz to 18 GHz and features SMA male-to-SMA female connectors. The device is designed for 50 Ohm systems and supports a maximum power handling capacity of 5 Watts at the stated attenuation level. Constructed with an aluminum heatsink body finished in black anodized coating, it ensures thermal stability. The unit functions as an in-line module, providing precise signal reduction for high-frequency applications.

Feature Summary

• Fixed 1 dB attenuation performance
• Broadband operation up to 18 GHz
• SMA male to SMA female interface
• Aluminum heatsink construction

Applications

• RF signal path attenuation
• Test and measurement equipment
• Microwave circuit design
• Communication system calibration

Procurement Notes

Verify the specific part number PE7013-1 against official Pasternack documentation to confirm connector type, attenuation value, and frequency range. Ensure compatibility with 50 Ohm system requirements. Check datasheet specifications for power handling limits and operating temperature ranges before integration. Confirm that the SMA interface matches the existing circuit board or cable assembly connections.

Selection Notes

Select this component when a precise 1 dB reduction is required in high-frequency environments up to 18 GHz. The choice depends on the need for an in-line module with SMA connectivity. Consider the 5 Watt power rating and thermal management provided by the aluminum heatsink. Ensure the black anodized finish meets environmental protection needs for the intended application environment.

Part Context

This model belongs to the Pasternack series of coaxial fixed attenuators. It is part of a family offering various attenuation values with consistent SMA connector interfaces. The product line targets applications requiring reliable signal level adjustment in microwave and radio frequency circuits. The design emphasizes durability through metal construction and standardized connector geometry.

Replacement Considerations

Substitute parts must match the 1 dB attenuation, 18 GHz frequency limit, and 50 Ohm impedance. Verify that replacement units offer identical SMA male-to-female configurations and comparable power handling capabilities. Ensure the physical form factor allows for direct installation in the existing setup without modification.
