PE7013-10

Overview

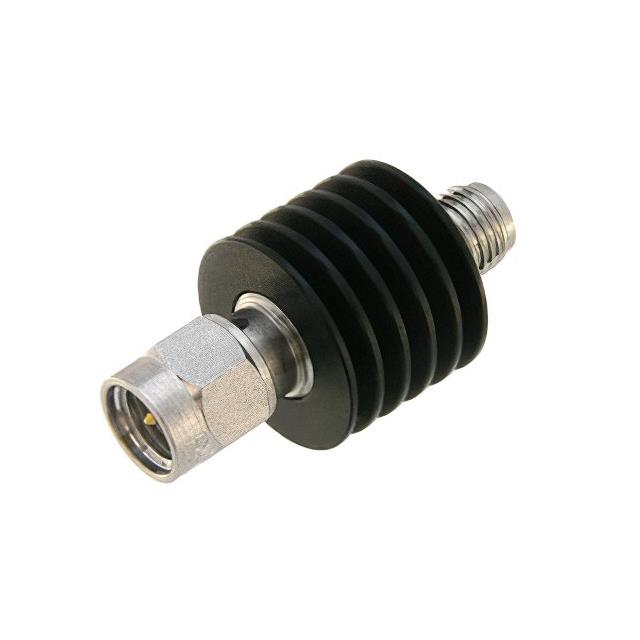

The Pasternack PE7013-10 is a 10 dB fixed attenuator featuring SMA male to SMA female connectors. It operates from DC to 18 GHz with a 50 Ohm impedance. The device utilizes a black anodized aluminum heatsink body rated for 5 Watts power handling.

Feature Summary

• Provides precise 10 dB signal attenuation across the specified frequency range
• Constructed with a black anodized aluminum heatsink body for thermal management
• Features SMA male to SMA female inline connection interface

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between RF components
• Protection of sensitive receiver inputs from high power signals

Procurement Notes

Verify the specific datasheet version, as suffixes like _16 may indicate packaging or revision differences. Confirm that the 5 Watt rating applies to the intended operating conditions. Ensure SMA connector compatibility with existing system interfaces before integration.

Selection Notes

Select this component when a 10 dB attenuation value is required up to 18 GHz. The 50 Ohm impedance matches standard RF systems. The aluminum heatsink design supports higher power dissipation compared to non-heatsink variants, making it suitable for continuous wave applications.

Part Context

This part belongs to the Pasternack fixed attenuator series. It serves as an inline module for controlling RF signal strength. The SMA interface ensures broad compatibility with common coaxial cable assemblies and test equipment found in laboratory and industrial environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
