PE7013-2

Overview

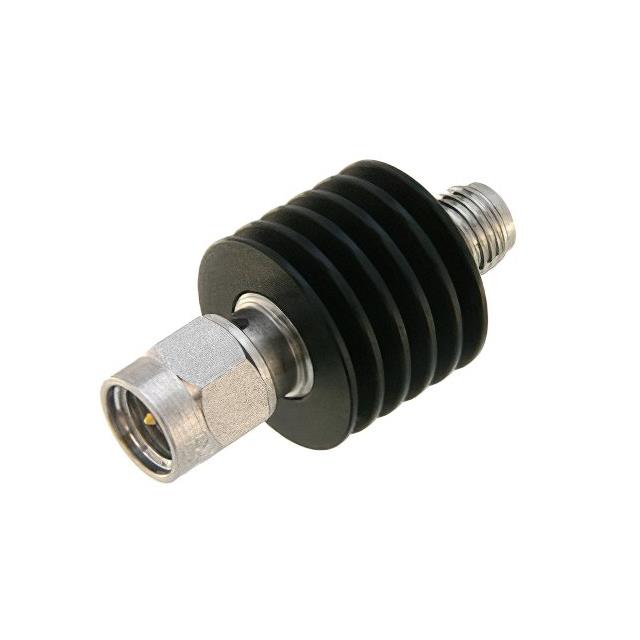

The Pasternack PE7013-2 is a fixed RF attenuator module designed for high-frequency applications. It provides a nominal attenuation of 2 dB with a frequency range spanning from 0 Hz to 18 GHz. The component features SMA male-to-female connectors and operates at a maximum power rating of 5 Watts. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability. The impedance is standardized at 50 Ohms, making it suitable for precision signal conditioning in microwave systems.

Feature Summary

• Fixed 2 dB attenuation value for precise signal level control
• Wideband operation covering DC to 18 GHz frequencies
• Integrated black anodized aluminum heatsink body for thermal management
• SMA male to female inline configuration for direct circuit integration

Applications

• Microwave test and measurement instrumentation
• Telecommunications equipment signal conditioning
• RF circuit design and development
• General-purpose RF system attenuation

Procurement Notes

Verify the specific datasheet version for the PE7013-2 to confirm mechanical dimensions and connector gender details. Ensure compatibility with 50 Ohm systems before integration. Check for any RoHS compliance documentation if required by project specifications. Confirm that the 5 Watt power rating aligns with the operational environment to prevent overheating or damage during use.

Selection Notes

Select the PE7013-2 when a fixed 2 dB reduction is required within an 18 GHz bandwidth. Consider the SMA interface for standard connectivity needs. Evaluate the 5 Watt power handling capability against peak signal levels. Compare against other attenuation values in the PE7013 series if different signal reduction levels are necessary for the specific application requirements.

Part Context

This component belongs to the Pasternack PE7013 series of fixed attenuators. The series includes various attenuation values such as 3 dB, 6 dB, and higher options, all sharing similar construction and performance characteristics. These modules are designed for consistent performance across a wide frequency range, providing reliable signal attenuation for professional RF engineering tasks.

Replacement Considerations

Direct substitutes include other PE7013 series models with different attenuation values if the 2 dB specification is not critical. Generic SMA attenuators may serve as alternatives but require verification of frequency range and power ratings. Ensure any replacement maintains the 50 Ohm impedance and SMA connector gender to preserve system integrity.
