PE7013-30

Overview

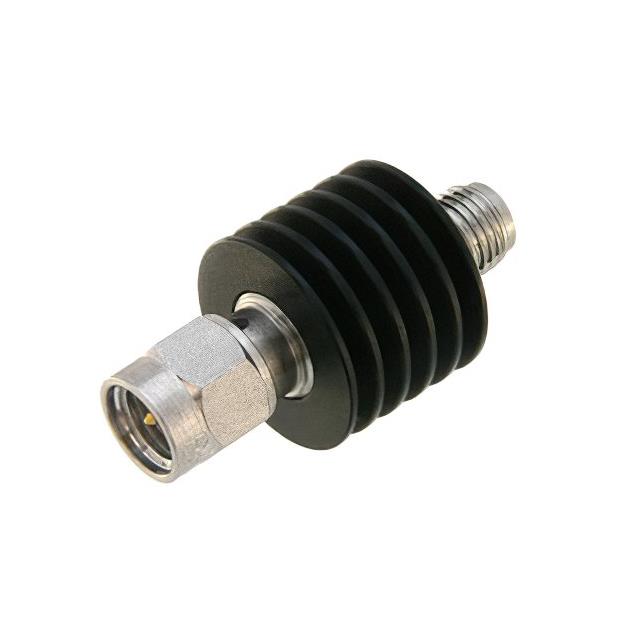

The Pasternack PE7013-30 is a fixed directional RF attenuator module featuring SMA male to SMA female connectors. It provides a nominal attenuation of 30 dB with an impedance of 50 ohms across a frequency range from DC to 18 GHz. The unit utilizes a black anodized aluminum heatsink body, rated for a maximum input power of 5 watts. Key electrical specifications include a maximum VSWR of 1.45:1 and an attenuation accuracy of ±1.5 dB within the operational bandwidth.

Feature Summary

• Directional signal attenuation capability
• Integrated aluminum heatsink body for thermal management
• SMA connector interface compatibility

Applications

• RF signal level reduction in test and measurement setups
• Protection of sensitive receiver inputs from high power signals
• Impedance matching and signal conditioning in microwave circuits

Procurement Notes

Verify the specific datasheet version for the PE7013-30 to confirm mechanical dimensions and connector plating details. Ensure the application environment remains within the specified temperature range of -65 to +125 degrees Celsius. Confirm that the 5-watt power rating aligns with system requirements before integration.

Selection Notes

Select this component when a precise 30 dB attenuation is required at frequencies up to 18 GHz. The SMA interface suits standard laboratory and industrial RF environments. Consider the heatsink design for applications requiring passive thermal dissipation without active cooling mechanisms.

Part Context

This part belongs to the Pasternack series of fixed directional attenuators. These components are designed to provide stable attenuation values with minimal reflection. The use of an aluminum heatsink distinguishes it from non-heatsink variants, offering improved power handling capabilities relative to smaller form factors.

Replacement Considerations

Compatible substitutes must match the 30 dB attenuation value, 50-ohm impedance, and SMA male-to-female configuration. Verify that alternative parts support the DC to 18 GHz frequency range and meet or exceed the 5-watt power rating.
