PE7013-40

Overview

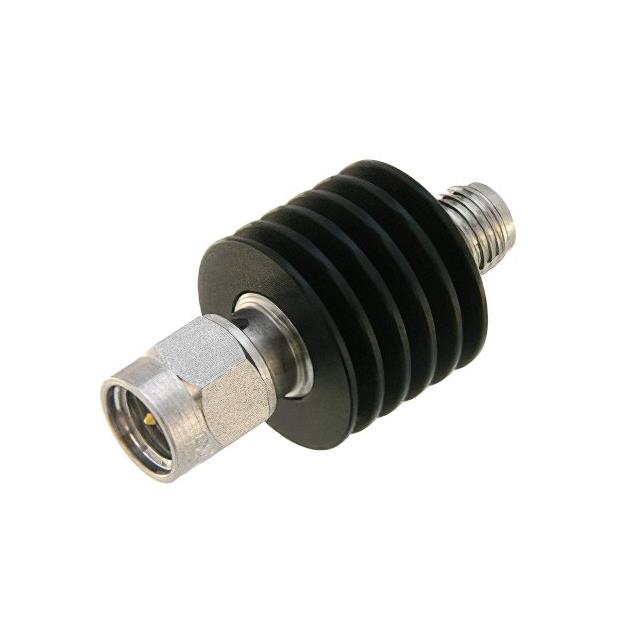

The Pasternack PE7013-40 is a fixed RF attenuator designed for high-frequency applications. It provides a nominal attenuation of 40 dB with a frequency range extending up to 18 GHz. The device utilizes SMA male-to-female connectors and features a black anodized aluminum heatsink body rated for 5 Watts power handling at the specified attenuation value.

Feature Summary

• Fixed 40 dB attenuation performance
• Frequency range up to 18 GHz
• SMA male to female connector interface
• Black anodized aluminum heatsink body

Applications

• RF signal level reduction in test and measurement setups
• Microwave circuit protection and impedance matching
• Signal conditioning in communication systems

Procurement Notes

Verify the specific datasheet version for the exact electrical tolerances and thermal characteristics before integration. Confirm that the SMA connector gender and mating requirements align with your system architecture. Ensure the operating environment remains within the specified temperature limits to maintain performance stability.

Selection Notes

Select this component when a precise 40 dB attenuation is required within an 18 GHz bandwidth. The 5-watt power rating suits moderate power levels, while the heatsink design aids in thermal management. Consider the SMA interface compatibility with existing cabling and fixtures.

Part Context

This model belongs to Pasternack's series of fixed coaxial attenuators. These components are engineered for consistent performance across microwave frequencies. The series typically offers various attenuation values and connector types to suit diverse RF engineering needs.

Replacement Considerations

Direct substitutes include other 40 dB fixed attenuators from Pasternack with identical SMA interfaces, such as the PE7013-40 variant from different manufacturing batches. Cross-brand replacements require matching the 40 dB attenuation, 18 GHz frequency limit, and 5W power rating.
