PE7013-6

Overview

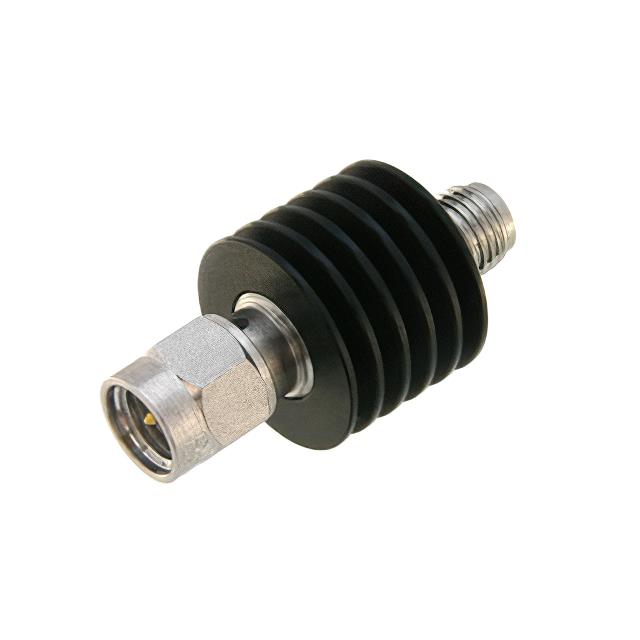

The Pasternack PE7013-6 is a fixed RF attenuator module designed for in-line applications. It provides a nominal attenuation of 6 dB across a frequency range of 0 Hz to 18 GHz. The component features SMA male and female connectors and operates with a characteristic impedance of 50 Ohms. It is rated for a maximum power handling capacity of 5 Watts at the stated attenuation value. The unit utilizes a black anodized aluminum heatsink body for thermal management.

Feature Summary

• Fixed 6 dB attenuation performance
• Broadband operation up to 18 GHz
• SMA male to female interface
• 5 Watt power rating

Applications

• RF signal level reduction
• Test and measurement instrumentation
• Telecommunications equipment
• Microwave circuit protection

Procurement Notes

Verify the specific part number PE7013-6 against official Pasternack documentation to confirm the 6 dB attenuation value, 18 GHz frequency limit, and 5W power rating. Ensure compatibility with SMA connector interfaces and 50 Ohm system impedance requirements before integration.

Selection Notes

Select this component when a precise 6 dB reduction is required within the 0 Hz to 18 GHz bandwidth. Consider the 5W power handling capability and SMA form factor for suitable test setups or signal chain configurations requiring fixed attenuation without variable adjustment.

Part Context

This model belongs to the Pasternack PE7013 series of fixed attenuators. Similar variants include PE7013-1 (1 dB), PE7013-40 (40 dB), and others offering different attenuation values while maintaining the same SMA interface and general specifications.

Replacement Considerations

Direct substitutes may include other Pasternack models from the PE7013 series with identical 6 dB attenuation if available. Cross-manufacturer replacements must match the 50 Ohm impedance, SMA connectors, and 18 GHz frequency range.
