PE7014-1

Overview

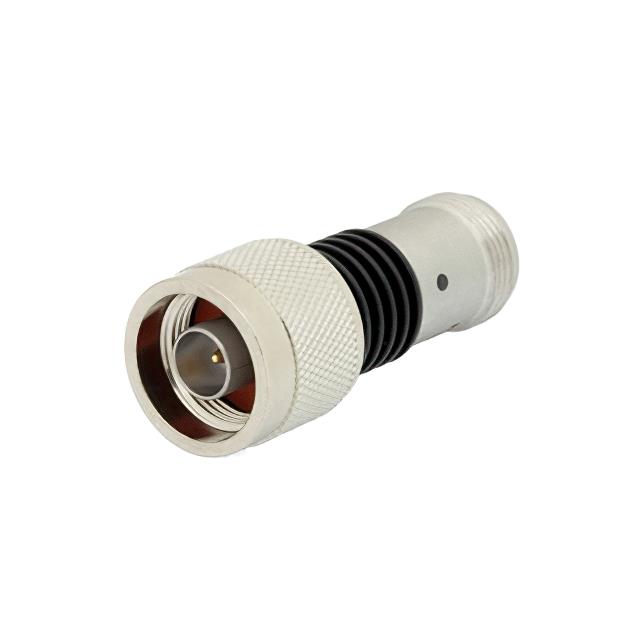

The Pasternack PE7014-1 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It features N Male and N Female connectors with a nominal attenuation value of 1 dB at a 50 Ohm impedance. The unit utilizes an aluminum heatsink body with black anodized plating, rated for a maximum input power of 5 Watts. Mechanical dimensions are approximately 4.5 inches in length, 3.5 inches in width, and 2.65 inches in height. It operates within a temperature range of -65°C to +125°C and maintains a maximum VSWR of 1.45:1 across the frequency range.

Feature Summary

• Fixed attenuation design providing consistent signal reduction
• Aluminum heatsink construction with black anodized finish for thermal management
• N Male to N Female connector configuration for standard interfacing

Applications

• Microwave test and measurement setups
• RF signal path power level adjustment
• Communication system component integration

Procurement Notes

Verify the specific datasheet version for the PE7014-1 to confirm current manufacturing status and compliance details. Ensure that the required operating frequency range and power handling capabilities align with the 18 GHz and 5 Watt specifications. Cross-reference connector types and mechanical dimensions against system requirements before finalizing procurement decisions.

Selection Notes

Select this component when a precise 1 dB attenuation is required in systems operating up to 18 GHz. Consider the 5 Watt power rating and the physical size constraints imposed by the aluminum heatsink body. Verify compatibility with existing N-type connector interfaces and ensure the operating temperature range meets environmental conditions.

Part Context

This part belongs to the Pasternack line of fixed microwave attenuators. These components are engineered for stable performance in RF environments. The series includes various attenuation values and power ratings, all sharing similar construction methods using aluminum heatsinks and standardized connectors to ensure reliability in demanding applications.

Replacement Considerations

Compatible substitutes include other 1 dB fixed attenuators from Pasternack with N-type connectors, such as those in the PE7014 series. Ensure replacement parts match the 50 Ohm impedance, 18 GHz frequency limit, and 5 Watt power rating. Verify mechanical fit and connector gender compatibility.
