PE7014-10

Overview

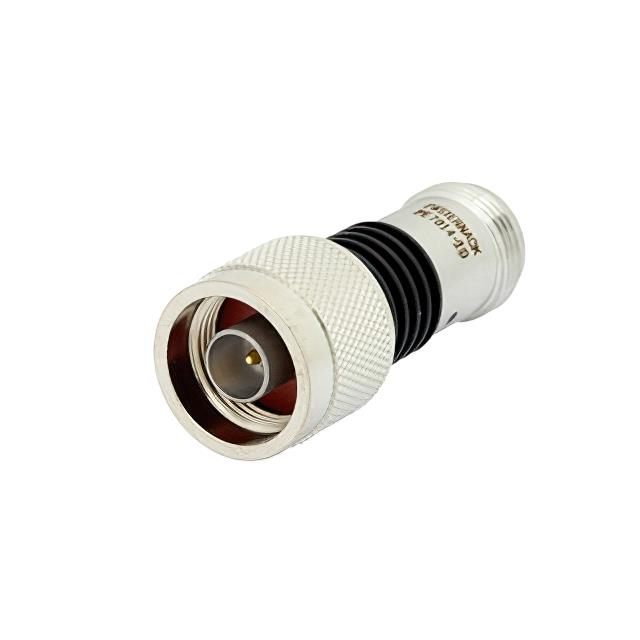

The Pasternack PE7014-10 is a fixed RF attenuator designed for high-frequency applications. It provides a nominal attenuation of 10 dB with a frequency range extending up to 18 GHz. The unit features N Male to N Female connectors and operates at a power rating of 5 Watts. Constructed with an aluminum heatsink body finished in black anodized coating, it ensures thermal stability and durability in demanding environments.

Feature Summary

• Fixed 10 dB attenuation value
• Broadband operation up to 18 GHz
• Robust aluminum heatsink construction

Applications

• RF signal level control
• Test and measurement setups
• Microwave circuit integration

Procurement Notes

Verify the specific datasheet version for precise VSWR and insertion loss tolerances before integration. Confirm connector gender and mating compatibility with existing test fixtures. Ensure the 5W power rating aligns with peak signal levels to prevent component damage during operation.

Selection Notes

Select this model when a stable 10 dB reduction is required across the microwave spectrum up to 18 GHz. The N-type interface suits standard laboratory and industrial RF systems. Consider the aluminum housing for passive cooling requirements in enclosed assemblies.

Part Context

This component belongs to Pasternack's line of fixed attenuators, which offer precise attenuation values for signal conditioning. The PE7014 series utilizes durable materials to maintain performance consistency under varying thermal conditions, supporting reliable signal integrity in high-frequency transmission paths.

Replacement Considerations

Check for exact 10 dB attenuation and 18 GHz frequency coverage in substitutes. Ensure N Male/Female interfaces match. Verify equivalent 5W power handling and similar physical dimensions for direct replacement in existing mounts.
