PE7014-2

Overview

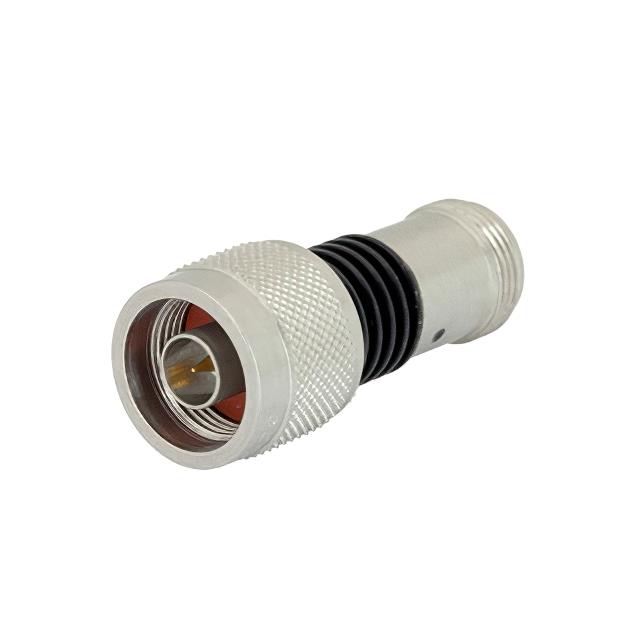

The PE7014-2 is a fixed directional attenuator manufactured by Pasternack Enterprises. It provides an attenuation value of 2 dB with a 50 Ohm impedance. The component features N Male and N Female connectors. It is rated for up to 5 Watts of power and operates up to 18 GHz. The body is constructed from aluminum with a black anodized finish.

Feature Summary

• Fixed directional attenuation design
• Aluminum heatsink body with black anodized finish
• N Male to N Female connector configuration

Applications

• RF signal level control
• Test and measurement setups
• Communication system calibration

Procurement Notes

Verify the specific datasheet version for the PE7014-2 model to confirm exact mechanical dimensions and VSWR specifications. Ensure compatibility with N-type connector standards in your application environment. Check manufacturer documentation for detailed handling instructions regarding the anodized aluminum body.

Selection Notes

Select this component when a low attenuation value of 2 dB is required within the 18 GHz frequency range. The 5 Watt power rating suits moderate power applications. The N-type interface ensures broad compatibility with standard RF test equipment and systems requiring male-to-female connections.

Part Context

This part belongs to the Pasternack fixed attenuator series, characterized by aluminum heatsink bodies. These components are designed for stable performance in RF environments. The series offers various attenuation values and power ratings to suit different signal processing needs.

Replacement Considerations

Consult official Pasternack documentation for confirmed substitute part numbers. Generic replacements may not match the specific N-type connector or power rating requirements.
