PE7014-20

Overview

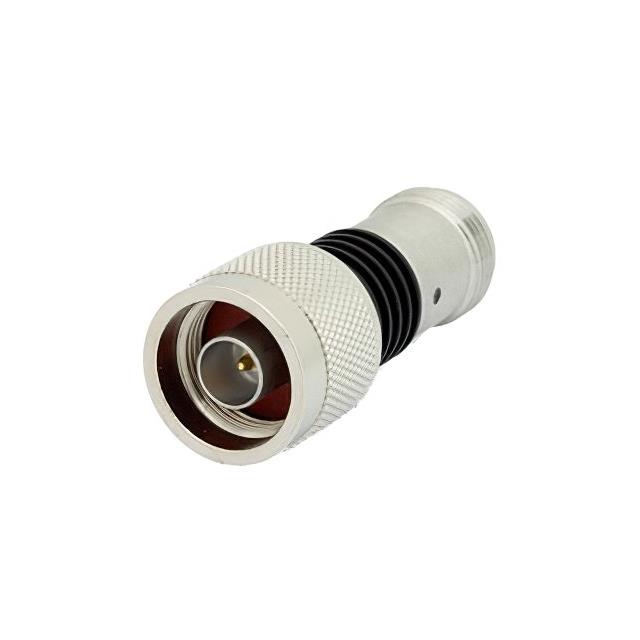

The PE7014-20 is a fixed coaxial attenuator manufactured by Pasternack. It provides a nominal attenuation of 20 dB with N male to N female connectors. The device operates up to 18 GHz and handles a power rating of 5 Watts. Constructed with an aluminum heatsink body featuring black anodized plating, it ensures thermal stability. The unit maintains a VSWR of 1.3:1 and offers an insertion loss tolerance of +/- 0.2 dB.

Feature Summary

• Fixed 20 dB attenuation performance for signal level control
• Robust aluminum heatsink construction with black anodized finish
• N-type connector interface for reliable RF interconnection

Applications

• RF test and measurement setups requiring precise signal reduction
• Communication systems needing fixed signal attenuation
• Laboratory equipment interfacing between high-power sources and sensitive receivers

Procurement Notes

Verify the specific datasheet version for the PE7014-20 to confirm current manufacturing status and detailed electrical tolerances. Ensure compatibility with system operating frequencies up to 18 GHz and power levels not exceeding 5 Watts. Confirm connector gender and mating requirements align with existing infrastructure before procurement.

Selection Notes

Select this component when a fixed 20 dB attenuation value is required in an N-type configuration. Consider the 5 Watt power handling capability and 18 GHz frequency range against system demands. The aluminum heatsink design supports applications requiring passive thermal dissipation without active cooling mechanisms.

Part Context

This part belongs to Pasternack's line of fixed coaxial attenuators designed for broadband RF applications. It serves as a passive component to reduce signal amplitude while maintaining impedance matching. The N-type interface distinguishes it from SMA or BNC variants within the same attenuation class.

Replacement Considerations

No public substitute part numbers are documented for this specific model.
