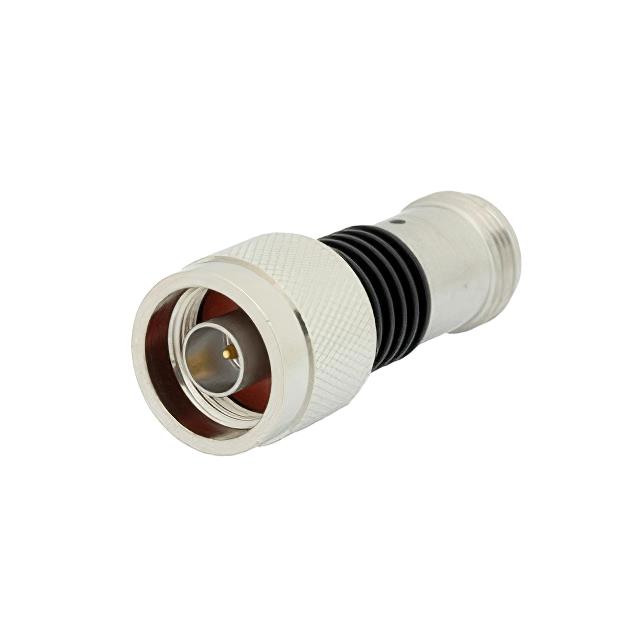

PE7014-3

$294.09

Description：3 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:8320f155025b Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：3 dB Fixed Attenuator, N Male to
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：3dB
Frequency Range：0 Hz ~ 18 GHz
Power (Watts)：5W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7014-3

Overview

The Pasternack PE7014-3 is a fixed attenuator designed for RF applications, offering a precise attenuation value of 3 dB. It features N Male to N Female connectors and operates within a frequency range up to 18 GHz. The unit is rated for a maximum power handling capacity of 5 Watts. Constructed with an aluminum heatsink body finished in black anodized coating, it ensures thermal stability during operation.

Feature Summary

Fixed 3 dB attenuation level
N Male to N Female connector interface
Aluminum heatsink construction
Black anodized finish

Applications

RF signal path attenuation
Test and measurement setups
Communication system integration

Procurement Notes

Verify the specific datasheet version for the PE7014-3 model to confirm the exact frequency limit and power rating, as some sources cite up to 3 GHz while others indicate 18 GHz. Ensure the connector gender matches the system requirements (Male to Female). Check RoHS compliance status if environmental regulations apply to the project.

Selection Notes

Select this component when a fixed 3 dB reduction is required in an N-type connectorized system. Consider the 5 Watt power rating for signal levels. The aluminum heatsink design aids in heat dissipation compared to non-heatsink variants. Verify the operating frequency range against the specific application needs, noting potential discrepancies between 3 GHz and 18 GHz specifications in different documentation.

Part Context

This part belongs to Pasternack's line of fixed attenuators, specifically those utilizing N-type connectors. It is distinct from step attenuators or variable attenuators by providing a constant attenuation value. The use of an aluminum heatsink suggests it is intended for higher power applications where thermal management is critical.

Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided data. Generic N-type fixed attenuators with similar electrical specifications may serve as alternatives, but connector compatibility and power ratings must be verified.
