PE7014-30

Overview

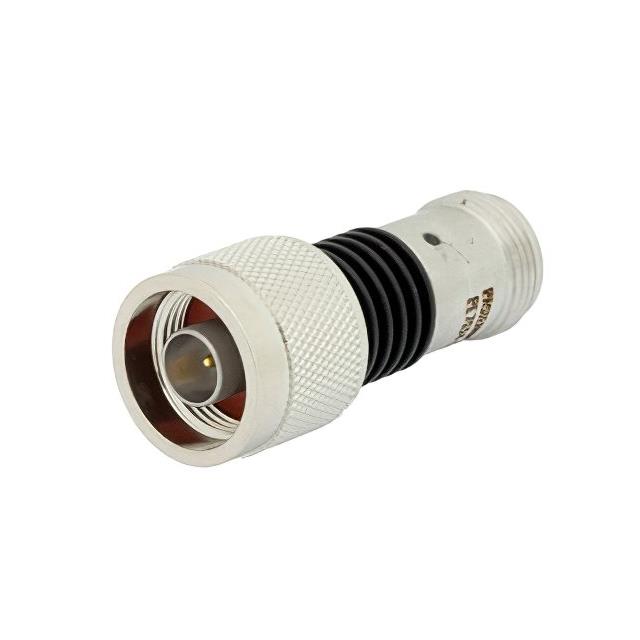

The PE7014-30 is a fixed attenuator manufactured by Pasternack, designed for radio frequency applications up to 3 GHz. It features N male and N female connectors with a nominal attenuation value of 30 dB. The unit utilizes an aluminum heatsink body with a black anodized finish, rated for power handling up to 5 Watts within the specified frequency range.

Feature Summary

• Fixed attenuation performance at 30 dB
• N male to N female connector configuration
• Aluminum heatsink construction with black anodized finish
• Rated for 5 Watts power handling up to 3 GHz

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between N-type components
• Power protection in RF transmission lines

Procurement Notes

Verify the specific datasheet version for exact VSWR and insertion loss tolerances. Confirm connector gender and mating compatibility with existing N-type infrastructure. Ensure thermal management requirements align with the 5 Watt rating during operation.

Selection Notes

Select this model when a precise 30 dB attenuation is required in N-type systems. Consider the aluminum heatsink design for thermal dissipation needs. Verify frequency coverage up to 3 GHz matches system operational bandwidth.

Part Context

This component belongs to Pasternack's fixed attenuator series, providing reliable signal attenuation without active components. It serves as a passive interconnect solution for maintaining signal integrity in high-frequency environments.

Replacement Considerations

Compatible substitutes include other 30 dB fixed attenuators with N male/N female interfaces from manufacturers such as Mini-Circuits or Amphenol, provided electrical specifications match.
