PE7014-40

Overview

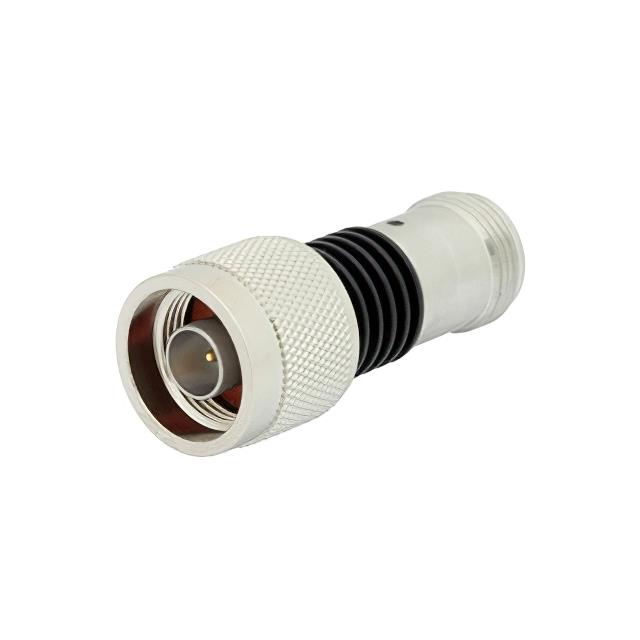

The Pasternack PE7014-40 is a fixed attenuator designed for RF and microwave applications. It provides a nominal attenuation of 40 dB with a characteristic impedance of 50 Ohms. The component features N-type connectors on both the male input and female output sides, ensuring compatibility with standard coaxial systems. Constructed with a black anodized aluminum heatsink body, it supports thermal management during operation. This unit belongs to the PE7014 series of fixed attenuators.

Feature Summary

• Fixed 40 dB attenuation value
• N Male to N Female connector configuration
• Black anodized aluminum heatsink body construction

Applications

• RF signal level reduction in test setups
• Microwave system impedance matching
• Signal isolation between circuit stages

Procurement Notes

Verify the specific datasheet version for precise VSWR and power handling limits. Confirm connector gender orientation matches the system requirements. Ensure the operating frequency range aligns with the application needs. Check for any environmental rating specifications if used in harsh conditions.

Selection Notes

Select this model when a precise 40 dB loss is required at 50 Ohms. The N-type interface suits general-purpose RF environments. Consider the heatsink design for thermal stability. Compare against other series if different connector types or attenuation values are needed.

Part Context

This component is part of the PE7014 series from Pasternack Enterprises. The series focuses on fixed attenuation solutions using robust aluminum construction. It serves as a passive interconnect device within broader RF and microwave networks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
