PE7015-1

Overview

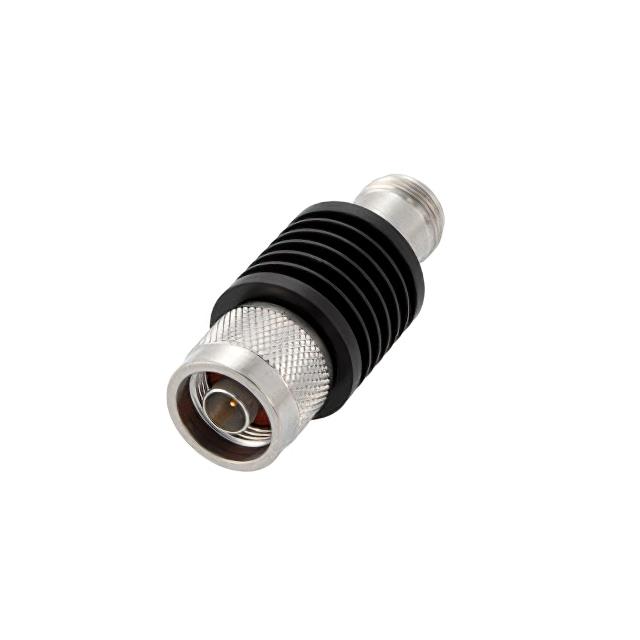

The Pasternack PE7015-1 is a fixed attenuator featuring Type N male to female connectors. It provides a nominal attenuation of 1 dB with a 50 Ohm impedance. The device operates within a frequency range of 0 Hz to 18 GHz and handles up to 10 Watts of power. Constructed from black anodized aluminum, it includes an integrated heatsink for thermal management.

Feature Summary

• Fixed 1 dB attenuation value
• Type N male to female interface
• Black anodized aluminum heatsink body

Applications

• General-purpose test instrumentation
• Telecommunications equipment signal conditioning
• RF circuit power level adjustment

Procurement Notes

Verify the specific datasheet version for the PE7015-1 model to confirm exact mechanical dimensions and connector tolerances. Ensure compatibility with 50 Ohm systems before integration. Check for RoHS compliance status in official documentation prior to procurement.

Selection Notes

Select this component when a precise 1 dB reduction is required at frequencies up to 18 GHz. The 10 Watt power rating suits moderate power applications. The Type N interface ensures broad compatibility with standard RF infrastructure.

Part Context

This part belongs to the PE7015 series of fixed attenuators by Pasternack. The series offers various attenuation values while maintaining consistent Type N connectivity and 18 GHz bandwidth specifications across different models.

Replacement Considerations

Compatible substitutes include other 1 dB fixed attenuators with Type N interfaces rated for 18 GHz and 10 Watts, such as those from equivalent RF component manufacturers.
