PE7015-10

Overview

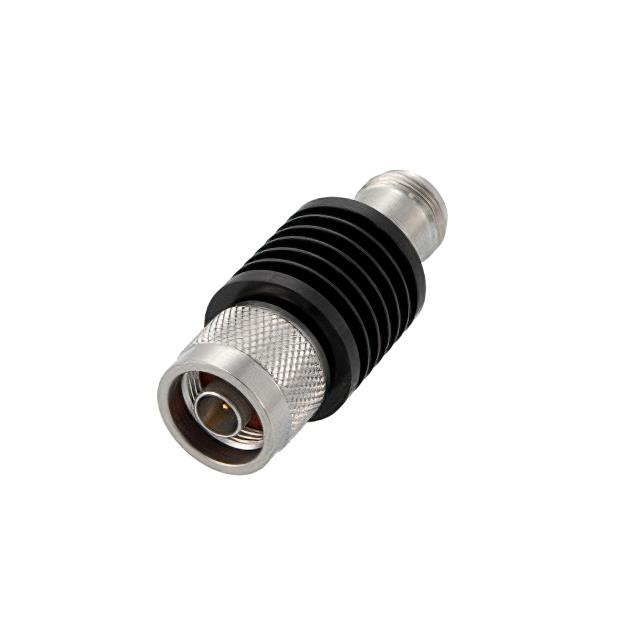

The Pasternack PE7015-10 is a fixed RF attenuator module designed for in-line applications. It provides a nominal attenuation of 10 dB with a frequency range extending from DC to 18 GHz. The component features N-type connectors, specifically male on one side and female on the other, ensuring compatibility with standard coaxial systems. It operates at a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 10 Watts at the stated attenuation value. The housing is constructed from black anodized aluminum, serving as a heatsink to manage thermal dissipation during operation.

Feature Summary

• Fixed 10 dB attenuation performance across a wide frequency spectrum up to 18 GHz
• N-type connector configuration with male and female genders for direct in-line integration
• Robust black anodized aluminum heatsink body designed for effective thermal management
• Rated for 10 Watts power handling at the specified attenuation level

Applications

• RF signal path power reduction in microwave test and measurement setups
• Signal conditioning within wireless communication infrastructure equipment
• Attenuation stages in radar system testing and calibration procedures

Procurement Notes

Verify that the specific part number matches the required attenuation value and connector gender configuration. Confirm that the operating frequency does not exceed the 18 GHz upper limit and that the power levels remain within the 10 Watt rating. Ensure environmental conditions align with the component's operational specifications before finalizing procurement decisions.

Selection Notes

Select this model when a precise 10 dB reduction is needed in a 50 Ohm system. Consider the N-type interface for compatibility with existing cabling. Evaluate the 18 GHz bandwidth against system requirements. Assess the 10 Watt power rating against peak signal levels to ensure reliable operation without damage or performance degradation.

Part Context

This component belongs to Pasternack's series of fixed RF attenuators. These modules are engineered for consistent performance in high-frequency environments. The series offers various attenuation values and connector types to suit different application needs. The PE7015-10 specifically addresses scenarios requiring moderate signal reduction with broad bandwidth capabilities.

Replacement Considerations

Compatible substitutes include other 10 dB fixed attenuators with N-type connectors and similar frequency ranges. Verify that alternative parts meet the 18 GHz upper limit and 10 Watt power handling specifications. Ensure mechanical dimensions and connector interfaces match the existing installation requirements.
