PE7015-2

Overview

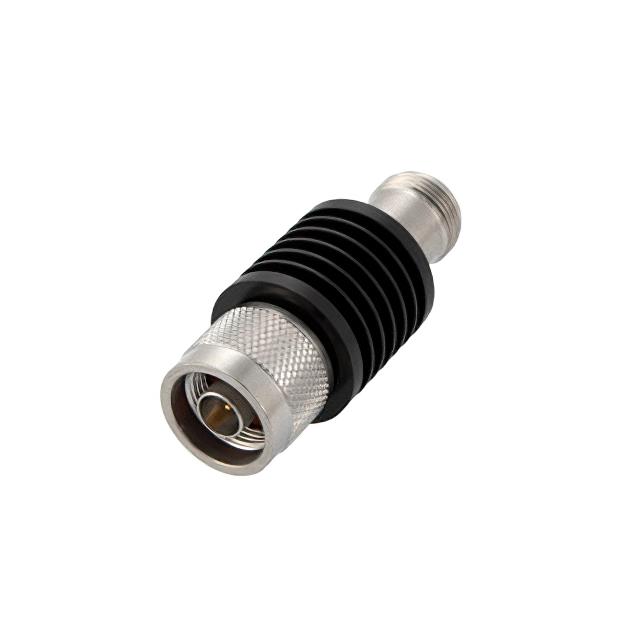

The Pasternack PE7015-2 is a fixed RF attenuator designed for in-line module applications. It features Type N male connectors on one side and Type N female connectors on the other, providing a precise attenuation value of 2 dB. The device operates effectively within a frequency range extending from 0 Hz to 18 GHz. It is constructed with a black anodized aluminum heatsink body, which supports thermal management during operation. The component is rated for a maximum power handling capacity of 10 Watts, ensuring reliable performance in high-power signal environments.

Feature Summary

• Provides fixed 2 dB attenuation for signal level adjustment
• Features Type N male-to-female connector interface
• Operates up to 18 GHz frequency range
• Rated for 10 Watts power handling capacity

Applications

• RF signal testing and measurement setups
• Telecommunications equipment signal conditioning
• Instrumentation systems requiring precise attenuation
• General-purpose RF circuit integration

Procurement Notes

Verify that the specific part number PE7015-2 matches the required 2 dB attenuation value, as the series includes variants with different attenuation levels such as 6 dB or 20 dB. Confirm compatibility with Type N connectors and ensure the 10 Watt power rating meets system requirements. Check for RoHS compliance status if environmental regulations apply to the project specifications.

Selection Notes

Select this component when a fixed 2 dB reduction is needed between 0 Hz and 18 GHz. Ensure the application involves coaxial connections compatible with Type N interfaces. Consider the 10 Watt power limit to avoid overheating. The black anodized aluminum body aids in heat dissipation, making it suitable for continuous operation in moderate power scenarios without additional cooling.

Part Context

This model belongs to the Pasternack PE7015 series of fixed attenuators. The series offers various attenuation values including 2, 6, 10, 20, and 30 dB options. All variants share similar physical construction with Type N connectors and 10 Watt ratings. The PE7015-2 specifically provides the lowest attenuation in this lineup, suitable for minor signal adjustments rather than significant power reduction.

Replacement Considerations

Compatible substitutes include Pasternack models PE7015-6, PE7015-10, PE7015-20, and PE7015-30, though these offer different attenuation values. Ensure any replacement maintains the same Type N male-to-female configuration and 18 GHz frequency limit. Verify that alternative parts meet the 10 Watt power handling requirement for direct interchangeability.
