PE7015-3

Overview

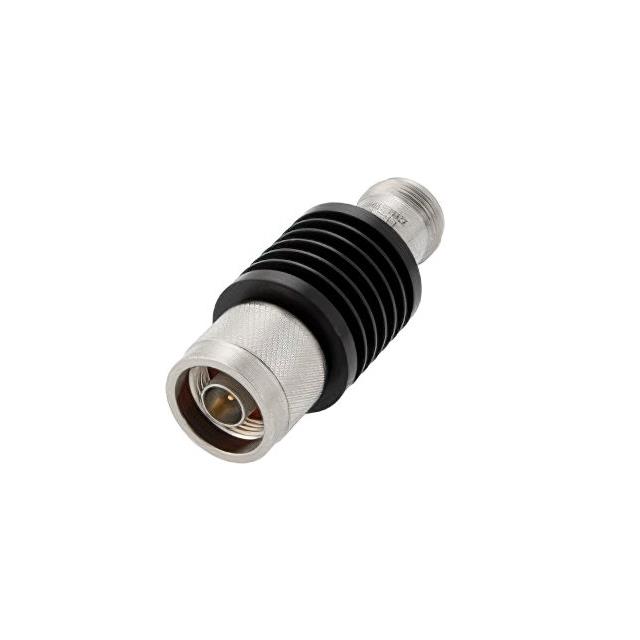

The Pasternack PE7015-3 is a fixed attenuator module designed for RF applications. It provides a nominal attenuation value of 3 dB across a frequency range extending from DC to 18 GHz. The component features Type N connectors, with a male interface on one side and a female interface on the other. It is rated for a maximum power handling capacity of 10 Watts. The housing is constructed from black anodized aluminum, which serves as a heatsink to manage thermal dissipation during operation.

Feature Summary

• In-line module design facilitating direct integration into RF signal paths
• Black anodized aluminum construction providing structural integrity and thermal management
• Standard Type N connector interfaces ensuring compatibility with common RF systems

Applications

• General-purpose radio frequency testing and measurement instrumentation
• Telecommunications equipment signal conditioning
• Laboratory setups requiring precise signal level reduction

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this model provides a fixed 3 dB loss. Confirm that the operating frequency does not exceed the 18 GHz upper limit specified in the datasheet. Ensure the system power levels remain within the 10 Watt rating to prevent damage. Check connector gender requirements to ensure correct mating with existing cables or devices.

Selection Notes

Select this component when a fixed 3 dB attenuation is required up to 18 GHz. Consider the Type N interface compatibility with the rest of the RF chain. Evaluate the 10 Watt power rating against peak and average signal levels. Compare with other series if different connector types or attenuation values are needed.

Part Context

This part belongs to the Pasternack PE7015 series of fixed attenuators. The series includes various attenuation values, such as 30 dB and 40 dB models, all sharing similar physical characteristics and frequency ranges. These modules are standardized components used for signal management in RF environments.

Replacement Considerations

Direct substitutes include other Pasternack models within the same series offering identical specifications. Cross-manufacturer replacements must match the 3 dB attenuation, 18 GHz frequency range, 10 Watt power rating, and Type N connector configuration.
