PE7015-30

Overview

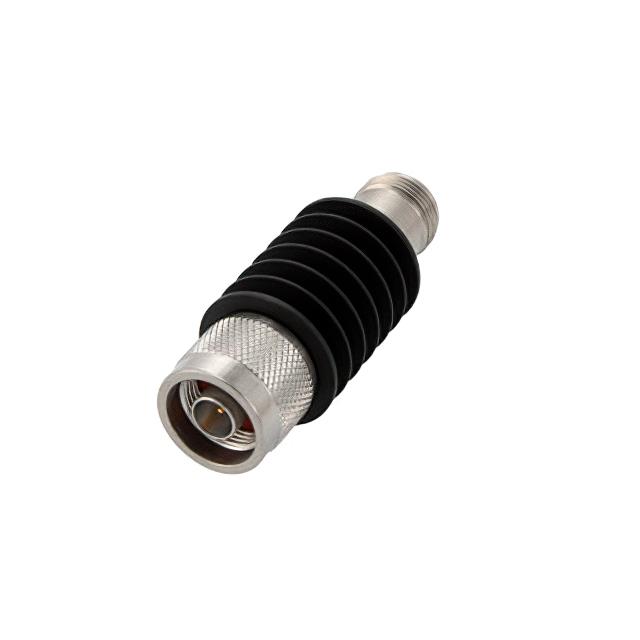

The Pasternack PE7015-30 is a fixed RF attenuator designed for in-line applications. It provides a nominal attenuation of 30 dB with a frequency range extending from 0 Hz to 18 GHz. The device features N-type connectors, specifically male on one side and female on the other, ensuring compatibility with standard coaxial systems. It operates at a power rating of 10 Watts and maintains a 50 Ohm impedance. The unit utilizes a black anodized aluminum heatsink body for thermal management and exhibits a VSWR of 1.2:1 maximum.

Feature Summary

• High-frequency operation up to 18 GHz
• Robust 10 Watt power handling capability
• Integrated heatsink body for thermal dissipation
• Standard N-type male-to-female interface

Applications

• RF signal level reduction in high-power test setups
• Attenuation within microwave measurement circuits
• Signal conditioning in broadband communication systems

Procurement Notes

Verify the specific datasheet version and connector gender configuration upon ordering. Confirm that the 18 GHz frequency limit and 10 Watt power rating align with your system requirements. Ensure environmental conditions fall within the specified operational temperature range for optimal performance and longevity.

Selection Notes

Select this component when high power handling and broad bandwidth are required. The 30 dB attenuation value suits significant signal reduction needs. The N-type interface offers mechanical stability for benchtop or permanent installations. Consider the heatsink design for applications involving continuous high-power operation.

Part Context

This model belongs to Pasternack's PE7015 series of fixed attenuators. The series shares common design characteristics including N-type connectors and high power ratings. Variants within the series differ primarily by attenuation value and specific connector configurations while maintaining similar electrical performance profiles across the frequency spectrum.

Replacement Considerations

Direct substitutes include other manufacturers' 30 dB N-type fixed attenuators rated for 10 Watts and 18 GHz. Ensure equivalent VSWR and impedance specifications. Verify physical dimensions if space constraints exist. Cross-reference datasheets for precise thermal and electrical matching.
