PE7015-40

Overview

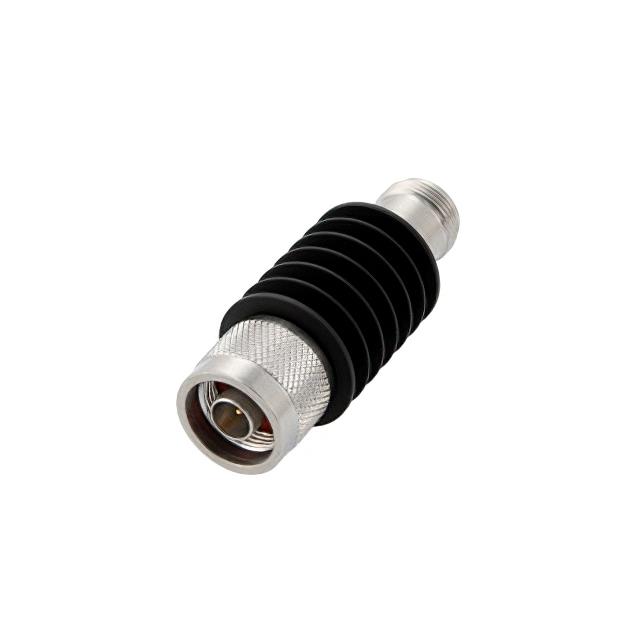

The Pasternack PE7015-40 is a fixed RF attenuator designed for in-line module applications. It provides a nominal attenuation of 40 dB with an impedance of 50 Ohms. The device operates across a frequency range from 0 Hz to 18 GHz. It is rated for a maximum power handling capacity of 10 Watts. The component features N-Type connectors, specifically utilizing an N Male connector on one side and an N Female connector on the other.

Feature Summary

• Fixed attenuation value of 40 dB
• N Male to N Female connector configuration
• Black anodized aluminum heatsink body construction

Applications

• RF signal level reduction in coaxial systems
• Test and measurement equipment setups
• Communication system signal conditioning

Procurement Notes

Verify that the required attenuation matches the 40 dB specification exactly. Confirm compatibility with N-Type male and female interfaces for both ends of the connection chain. Ensure the operating environment does not exceed the 10 Watt power rating or the 18 GHz frequency limit. Check physical dimensions against available space constraints due to the heatsink body design.

Selection Notes

Choose this model when a precise 40 dB reduction is necessary within the 0 Hz to 18 GHz bandwidth. Select based on the requirement for N-Type interconnects and high-power handling up to 10 Watts. Consider the black anodized aluminum heatsink for thermal management needs. Evaluate if the in-line module form factor fits the specific assembly requirements compared to other attenuator types.

Part Context

This component belongs to the Pasternack PE7015 series of fixed attenuators. The series includes various attenuation values such as 3 dB, 10 dB, and 30 dB, all sharing similar N-Type connector configurations and frequency ratings up to 18 GHz. The PE7015-40 specifically addresses higher attenuation needs within this standardized product line.

Replacement Considerations

Direct substitutes include other PE7015 series models like PE7015-30 or PE7015-10 if different attenuation levels are acceptable. Cross-reference with generic 40 dB N-Type fixed attenuators ensuring identical 50 Ohm impedance and 18 GHz frequency coverage.
