PE7015-6

Overview

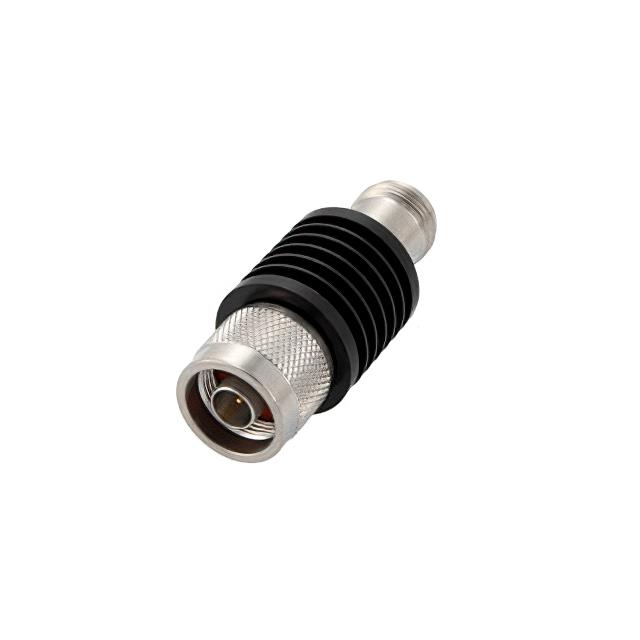

The Pasternack PE7015-6 is a fixed RF attenuator designed for N-type coaxial systems. It provides a nominal attenuation of 6 dB across a frequency range from DC to 18 GHz. The device features an N male connector on one side and an N female connector on the other, facilitating inline integration. It is rated to handle up to 10 Watts of power at the specified attenuation value. The unit utilizes a black anodized aluminum heatsink body to manage thermal dissipation effectively during operation.

Feature Summary

• Provides fixed 6 dB signal attenuation for RF applications
• Operates reliably from DC up to 18 GHz frequency range
• Features N male to N female connector interface configuration
• Constructed with black anodized aluminum heatsink body

Applications

• RF signal level reduction in microwave test setups
• Impedance matching between N-type components in communication systems
• Signal conditioning in high-frequency measurement equipment

Procurement Notes

Verify the specific part number PE7015-6 against official Pasternack documentation to confirm the 6 dB attenuation value and 18 GHz upper frequency limit. Ensure compatibility with N-type connectors and 10 Watt power rating requirements before procurement. Cross-reference datasheets for precise mechanical dimensions and material specifications.

Selection Notes

Select this component when a fixed 6 dB attenuation is required within N-type coaxial infrastructure operating up to 18 GHz. Consider the 10 Watt power handling capability and the aluminum heatsink design for thermal management needs. Ensure connector gender alignment matches the system architecture for proper inline installation.

Part Context

This component belongs to the Pasternack fixed attenuator series, which includes various attenuation values such as 1 dB, 10 dB, and others in the PE7015 family. These devices are engineered for consistent performance in RF environments, offering reliable signal control through standardized N-type interfaces and robust construction materials.

Replacement Considerations

Compatible substitutes include PE7015-1 (1 dB), PE7015-10 (10 dB), and PE7015-20 (20 dB) from the same manufacturer series. These alternatives maintain identical N male to N female configurations and 18 GHz operational limits while varying only in attenuation magnitude.
